MANUALS (3)
Lift Gate
Product Highlights
Description

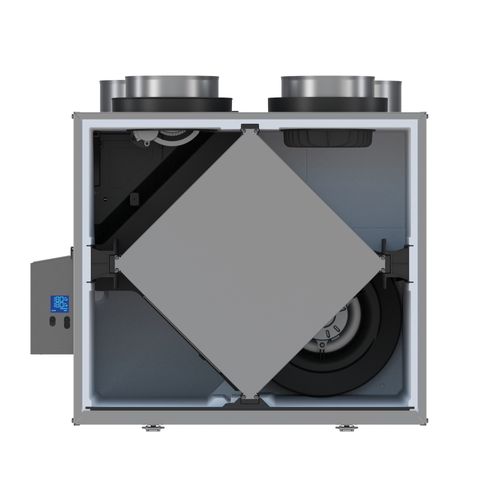

From the leader in residential indoor air quality this Broan AI Series HRV features VIRTUO technology providing the easiest installation on the market. This fresh air system has the quickest installation in its category saving the installer up to 20 minutes, thanks to auto-balancing and self-adjusting technology. The built-in LCD screen provides real-time airflows, power consumption and acts as a diagnostic error tool. This product delivers consistent results with airflow verification providing the most efficient and reliable solution on the market regardless of dwelling type.
Delivering 230 CFM our powerful, efficient and proprietary blower fan motors make it the ideal solution for larger homes. Installing a Heat Recovery Ventilator (HRV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable.
Features:
- Ports size: 6"
- Recirculation defrost
- Corrosion resistant galvanized steel door and cabinet
- One-piece molded insulation shell, no air leakage (expanded polystyrene; UL 94 HF-1 certified)
Unit electrical characteristics: 120 volts, 60 Hz, 3.6 A, 270 W
For residential indoor installation only
Specs
| Apparent Sensible Efficiency at 32°F: | 82% |
|---|---|
| Sensible Recovery Efficiency at 32°F: | 78% |
| Amperage: | 2.2 |
| Sensible Recovery Efficiency at -13°F: | 67% |
| Duct Size: | 6" |
| Port Location: | Top |
