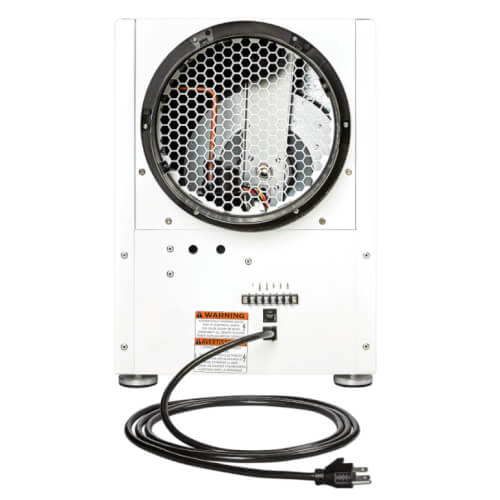

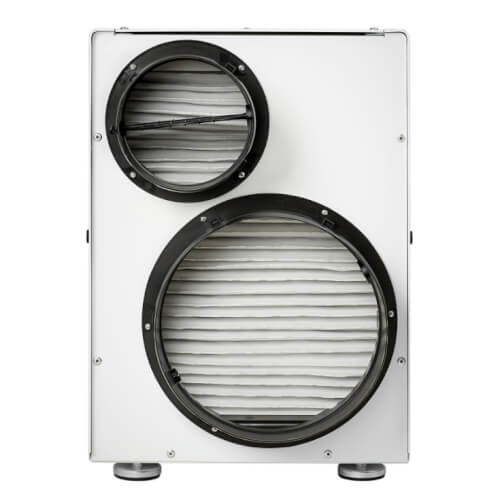

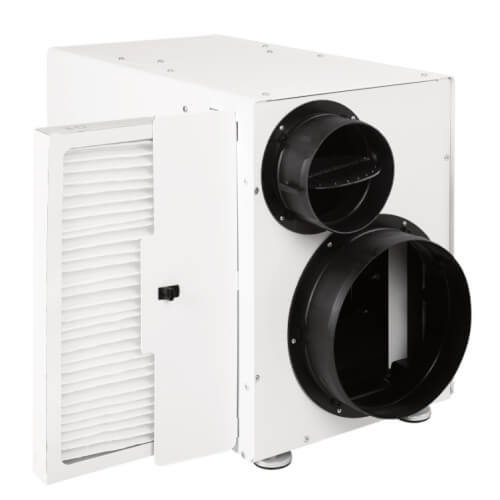

98 Pint Dehumidifier

Overview The Broan 98 Pint Dehumidifier delivers superior indoor air quality through MERV 13 filtration and dedicated moisture control. The energy efficient system provides 98 pints of water removal a day while minimizing the energy consumed. The included outdoor air inlet provides the option of drawing fresh outdoor air into the system and be controlled using the integrated damper.

Product Features

• Removes up to 98 pints of water per day
• Provides up to 2,300 sq. ft. of coverage making it the ideal solution for whole-home applications
• MERV 13 filtration installed standard to provide superior air filtration
• Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
• Humidity control can be done easily using either our DEH 3000 digital controller that is mounted in the interior space or with the DEH 3000 R digital control with its remote sensor that is mounted in the interior space where the humidity level needs to be managed
• Included fresh air inlet provides the option for fresh outdoor air to be ducted to the unit

Product Specifications

• Water Removal Capacity @ 80F & 60% RH (pints/day): 98
• Efficiency (pints/kWh): 6.1
• Energy Factor (liters/kWh): 2.95
• Power (Watts) @ 80°F & 60% RH: 670
• Airflow (CFM) @ 0.0 in. WG: 320
• Airflow (CFM) @ 0.2 in. WG: 297
• Airflow (CFM) @ 0.4 in. WG: 215
• Filtration: MERV 13
• Optional Fresh Air Duct: 6" Round
• Inlet Duct Size: 10" Round
• Outlet Duct Size: 10" Round
• Operating Current (Amps): 5.9
• Power Cord: 9' Type B Plug
• Integrated Circuit Breaker: Yes
• Refrigerant Type: R410A
• Refrigerant Qty (oz.): 25
• Drain Connection: 3/4" Threaded Female NPT
• Coverage (sq. ft): 2300
• Product Weight (Lbs): 81
• Manufacturer Warranty: 6 Year
• Product Dimensions: 14.5"W x 19.5"H x 32.375"D
• Controls: DEH 3000 / DEH 3000 R
