116140A has been discontinued
Discontinued November 25, 2025
This product was discontinued by the manufacturer.
MANUALS (5)
Product Highlights
–
1/2"
2.1 Cv
Threaded Connection
Female Thread Type
Description
–

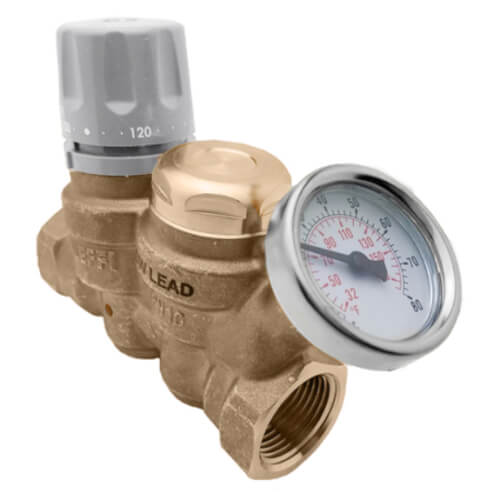

The ThermoSetter adjustable thermal balancing valve is used for automatic balancing of recirculation loops in domestic hot water systems, to speed hot water delivery, reduce water waste and save energy. The internal thermostatic balancing cartridge automatically modulates flow to ensure a constant temperature
in the recirculation piping system.
Product Features
Product Features
- Dry well for temperature gauge or probe.
- Optional outlet temperature gauge
- Optional check valve
- Max working pressure: 230 psi (16 bar)
- Max differential pressure: 14.5 psi (1 bar)
- Max inlet temp: 195°F
- Temp adjustment range: 95° - 140°F (35°- 60°C)
- Cv max: 2.1
- Cv min: 0.23
- Cv design: 0.52
Specs
–
| Size: | 1/2" |
|---|---|
| Flow Capacity (Cv): | 2.1 |
| Connection Type: | Threaded |
| Thread Type: | Female |
