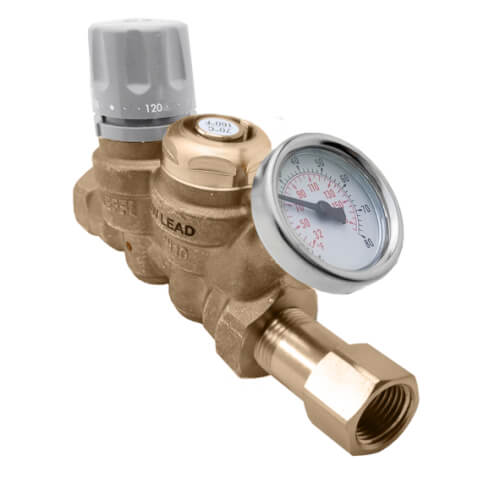

3/4" FNPT ThermoSetter Adjustable Thermal Balancing Valve w/ Thermal Bypass Cartridge

Brand:
Caleffi
SKU:
116250AC
Rating:
(0)
Q&A:
(0)
3/4" FNPT ThermoSetter Adjustable Thermal Balancing Valve w/ Thermal Bypass Cartridge
Magnifying glass
Hover image to zoom
116250AC has been discontinued
Discontinued November 25, 2025
This product was discontinued by the manufacturer.

Product Highlights

–
Product Highlight: Size
3/4"
Product Highlight: Flow Capacity (Cv)
2.1 Cv
Product Highlight: Connection Type
Threaded Connection
Product Highlight: Thread Type
Female Thread Type

Description

–
Features:
  • Adjustable thermal balancing valve for domestic hot water recirculation circuits.
  • With thermal by-pass cartridge for thermal disinfection.
  • Drywell for temperature gauge or probe.
  • DZR low-lead brass body.
  • Optional inlet check valve.
  • Optional outlet temperature gauge.
  • Max. working pressure: 230 psi
  • Adjustment temperature range: 95°F - 140°F
  • Cv max: 2.1; Cv min: 0.23
  • Cv disinfection: 1.2
  • Certifi ed to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.

Specs

–
Size:

3/4"

Flow Capacity (Cv):

2.1

Connection Type:

Threaded

Thread Type:

Female
