Product Highlights
–
8.4 Cv
3/4"
C x C Connection
Brass
400 MAX PSI
32°F Min Temp
Description
–

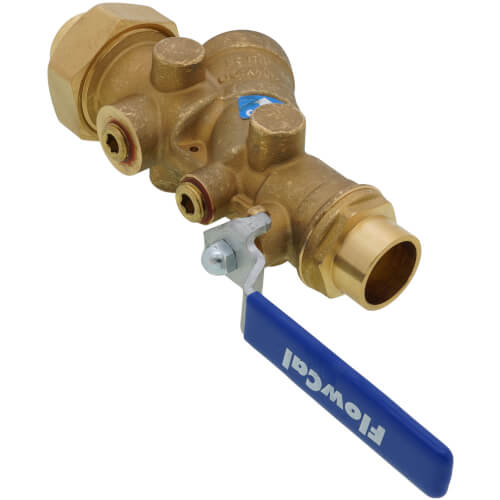

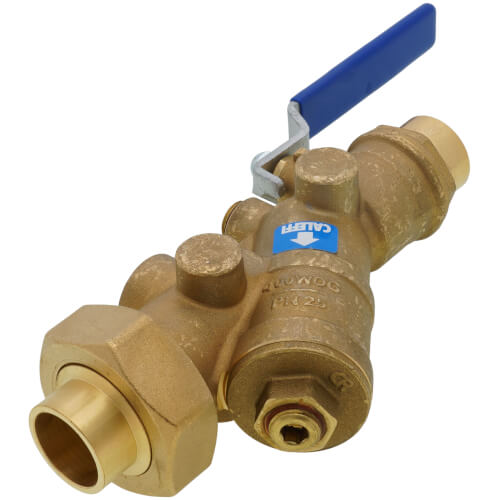

The FlowCal™ Y-strainers include a combination Y-strainer with
integral ball valve. Inspection, cleaning and replacing the strainer
cartridge can be performed easily without removing the body from the
pipeline. All configurations are available with optional factory-installed
pressure and temperature test ports. Drain valves are also available as
an accessory for installing in the blowdown port connection.
Features
Features
- Y-strainer with integral ball valve.
- Brass body.
- Stainless steel filter cartridge.
- Pressure and temperature ports: 1/4" NPT.
- Maximum working pressure: 400 psi (400 WOG).
- Working temperature range: 32 - 212°F (0 - 100°C).
- Max. percentage glycol: 50%.
- Strainer (20 mesh).
Specs
–
| Flow Capacity (Cv): | 8.4 |
|---|---|
| Size: | 3/4" |
| Connection Method: | Sweat |
| Connection Type: | C x C |
| Material: | Brass |
| Max Pressure (PSI): | 400 |
| Min Temp (F): | 32°F |
| Max Temp (F): | 212°F |
