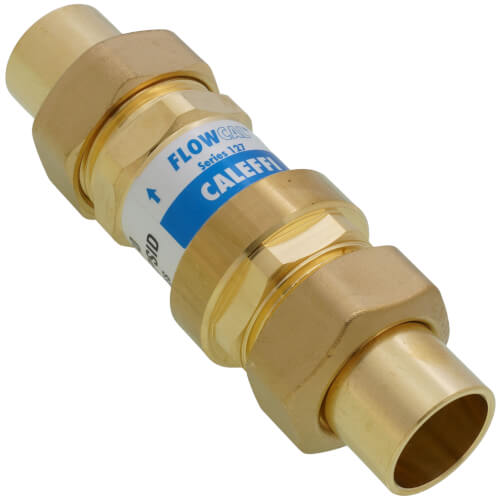

3/4" Sweat FlowCal Automatic Flow Balancing Valve (1.5 GPM)

FlowCal pressure independent balancing valves maintain a fixed flow rate within varying system differential pressure ranges. The design incorporates an exclusive flow cartridge, made of an anti-scale, low noise polymer and a compact DZR low-lead brass valve body for use in hydronic and domestic water systems. The FlowCal eliminates the need for onsite measurements and trial and error flow rate setting as required with manual calibration valves. It is ideal for applications including open fan coil systems and hot water recirculation balancing.

Specifications:

• Compact automatic flow balancing valve
• DZR low-lead brass valve body
• Patented, anti-scale, low noise polymer FlowCal cartridge
• Max working pressure: 230 psi (16 bar)
• Temp range: 32° - 212°F (0° – 100°C)
• Max percentage of glycol: 50%
• Differential pressure control ranges: 2 - 32 psid
• Flow Accuracy: ±10%
• Compliance with the following standards: NSF/ANSI 372 - Drinking Water System Components - Lead Content, Reduction of Lead in Drinking Water Act - California Health and Safety Code 116875, S.3874 - Reduction of Lead in Drinking Water Act, Vermont Act 193 - The Lead in Plumbing Supplies Law, Maryland's Lead Free Law Hb.372
