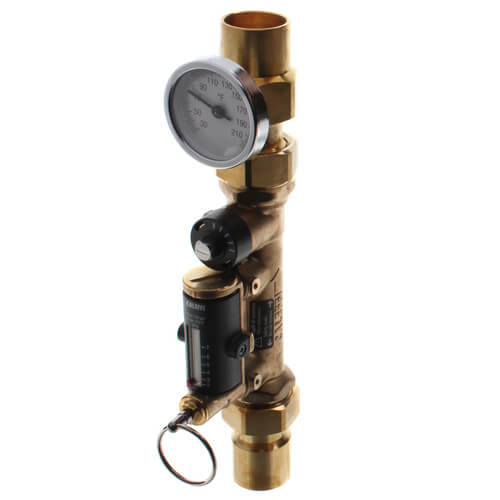

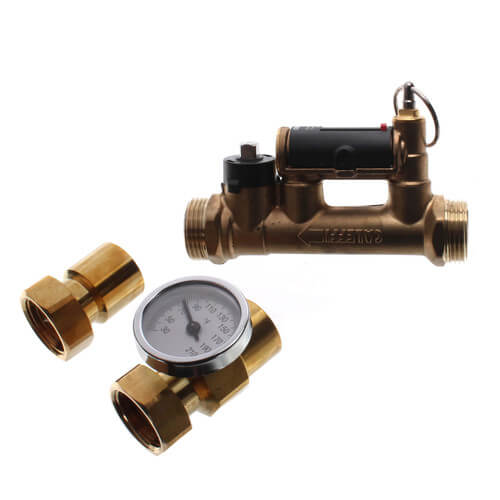

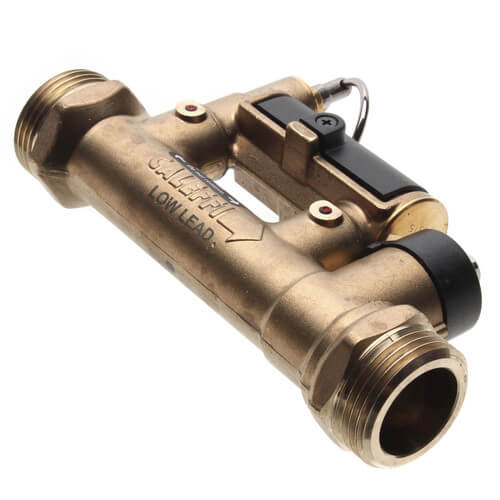

1" Sweat QuickSetter Balancing Valve w/ Flow Meter & Temp. Gauge - 2.0 to 7.0 GPM (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Sweat Connection
7 MAX GPM
6.3 Cv
150 MAX PSI
14°F - 230°F
Description
–
The QuickSetter+ manual balancing valve contains a built-in flow meter and sight gauge, negating the need for differential pressure gauges and reference charts. Circuit balancing is fast, easy and accurate. Constructed of low-lead brass, QuickSetter+ is ideally
suited for use in plumbing applications such as hot water recirculation systems. The built-in check valve protects against circuit thermo-siphoning. The flow meter sight gauge is dry (not exposed to the fluid) thus eliminating the possibility of gauge clouding/
scaling over time.
Features:
Features:
- Direct reading of flow rate.
- No sight gauge clouding or scaling.
- Brass valve body and flow meter.
- Rotatable valve for flow rate adjustment.
- Graduated scale flow meter with magnetic movement flow rate indicator.
Specs
–
| Size: | 1" |
|---|---|
| Connection Type: | Sweat |
| Min Flow (GPM): | 2 |
| Max Flow (GPM): | 7 |
| Flow Capacity (Cv): | 6.3 |
| Max Pressure (PSI): | 150 |
| Temperature Range (F): | 14°F - 230°F |
| Lead Free: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
1 Replacement Part
Check Valve Insert for 521
SKU: R39204
