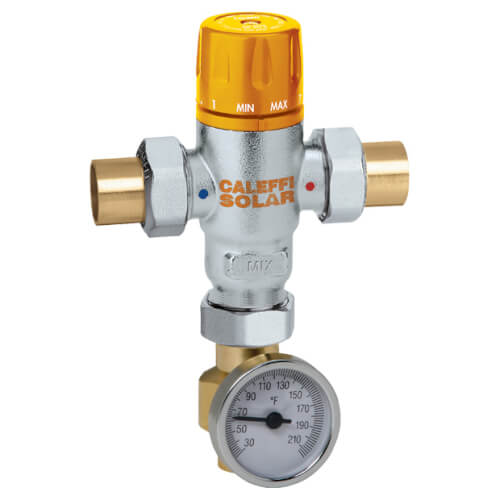

Main product image of 1" Sweat Thermostatic Solar Mixing Valve w/ Temp Gauge

Hover image to zoom

1" Sweat Thermostatic Solar Mixing Valve w/ Temp Gauge

Name: 1" Sweat Thermostatic Solar Mixing Valve w/ Temp Gauge
Brand: Caleffi
SKU: 252168A
Price: 228.11 USD
Availability: OutOfStock

Brand:

Caleffi

SKU:

252168A

Rating:

(0)

Q&A:

(0)

1" Sweat Thermostatic Solar Mixing Valve w/ Temp Gauge

Hover image to zoom

252168A has been discontinued

Discontinued November 25, 2025

This product was discontinued by the manufacturer.

MANUALS (2)

Product Highlights

–

C x C Connection

150°F Max Temp

80°F Min Temp

80°F to 150°F

Brass

Description

–

The thermostatic mixing valve is used in systems for scald protection in the production of domestic hot water. It is designed to maintain the set temperature of the mixed water supplied to the user when there are variations in the temperature and pressure conditions of the incoming hot and cold water or in the water’s flow rate. This particular series of mixing valves can function continuously at the high temperatures of the incoming hot water from the solar storage tank.

Specifications

Adjustable thermostatic 3-way mixing valve for solar systems.
With built-in inlet check valves.
With temperature gauge.
Setting range: 80° - 150°F
Max working pressure: 200 psi
Max inlet temp: 210°F

Specs

–

Size:	1"
Connection Method:	Sweat
Connection Type:	C x C
Temperature Range (F):	80°F to 150°F
Min Temp (F):	80°F
Max Temp (F):	150°F
Material:	Brass
Includes:	Gauge
Body Pattern:	3-Way
Application:	Point of Source
Standards Met:	ASSE 1017
