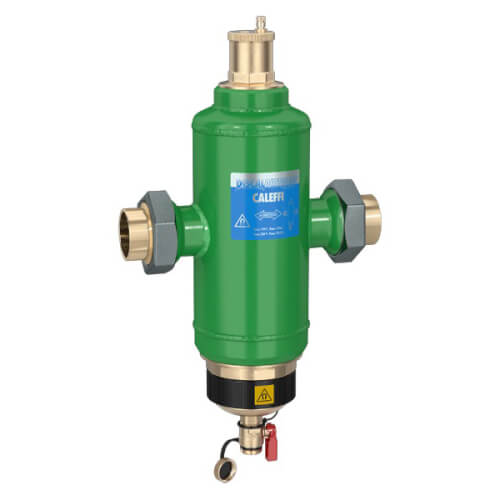

2" FNPT Union 5461 Series DISCAL DIRTMAG Air & Dirt Separator w/ Magnet

The DISCAL DIRTMAG air and dirt separator with magnet incorporates three important functions for hydronic systems: air separation, dirt separation and ferrous impurity separation. An internal screen element facilitates the coalescing and capture of micro-bubbles to facilitate high performance automatic air removal, while concurrently causing the capture of non-ferrous debris particles down to 5 micron size. A powerful magnetic field induced by rare-earth neodymium magnets facilitates the capture of ferrous impurities such as iron oxide down to microscopic size thus delivering 2½ times the ferrous impurity removal performance of standard air and dirt separators.

Features

• Epoxy resin coated steel body.
• Stainless steel float guide pin and linkage.
• Stainless steel mesh internal element.
• Complete with union connections.
• Max working pressure: 150 psi
• Vessel temp range: 32° - 230°F
