Product Highlights
–
1/2"
MNPT x MNPT Connection
17 Cv
Brass
Description
–

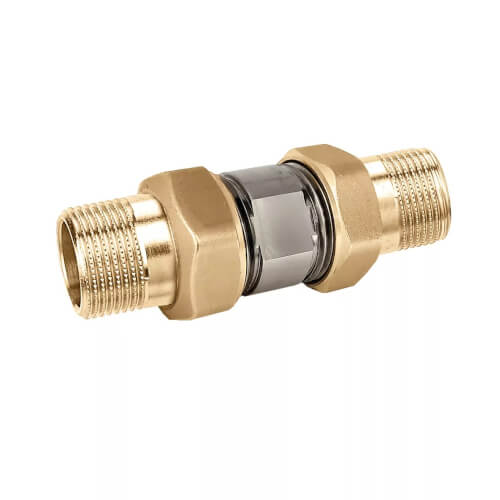

Serviceable flow check valve (MNPT) Serviceable low lead check valves. connection: 1/2" MNPT. Maximum working pressure: 150 psi. Medium temperature range: 32–150 Deg F. Cv: 17.
Product Description
A check valve ensures that water only flows in a single direction of a plumbing or hydronic system. The NA51 series low-lead serviceable inline spring check valves, ideal for residential and commercial applications, feature union connections with a variety of end connection options for easy installation and maintenance. The valve is constructed of a stainless steel body and low-lead brass or copper tailpieces. It complies with low lead laws and listed by ICC-ES, and meets codes IPC, IRC, UPC and NPC for use in accordance with the US and Canadian plumbing codes.
Product Features
Product Description
A check valve ensures that water only flows in a single direction of a plumbing or hydronic system. The NA51 series low-lead serviceable inline spring check valves, ideal for residential and commercial applications, feature union connections with a variety of end connection options for easy installation and maintenance. The valve is constructed of a stainless steel body and low-lead brass or copper tailpieces. It complies with low lead laws and listed by ICC-ES, and meets codes IPC, IRC, UPC and NPC for use in accordance with the US and Canadian plumbing codes.
Product Features
- Max percentage of glycol: 50%
- Max working pressure:150 psi
- Temp range: 32° - 150°F (190°F for max 1 hour)
- Opening pressure differential: 0.25 psi (1/2" through 1-1/4”); 0.50 psi (1-1/2”, 2")
Specs
–
| Size: | 1/2" |
|---|---|
| Connection Type: | MNPT x MNPT |
| Flow Capacity (Cv): | 17 |
| Connection Method: | Threaded |
| Material: | Brass |
