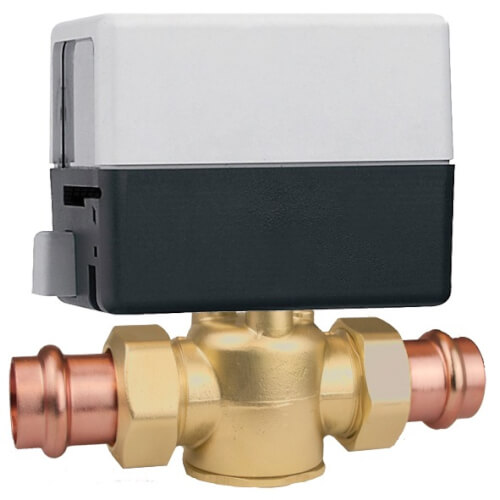

3/4" Press Long 2-Way Zone Valve w/ Screw Terminals, 7.5 Cv (24V)

Includes (2) press fittings (NA16265L) and (NA16265)

Z-one™ valves are used to automatically shut-off the flow or redirect hot and chilled water in hydronic systems, open systems, closed systems, low-pressure steam; and are UL listed for plenum installations. The motorized two-position, on/off, spring return Z1 series actuator has an end mounted push button for quick installation to the valve body. The actuator is equipped with or without an auxiliary micro-switch and models are either normally closed or normally open and with wire or terminal connections. The high temperature zone valve body Z2 series is 2-way straight through and the valve body Z3 series is 3-way diverting or mixing. The Z1 series actuator is easily attached by a push button lock and requires no tools. The Z-one valve provides 100% bubble-tight seat close-off leakage. The high temperature and high close-off performance characteristics of these zone valves, combined with the compact size, makes them suitable to fit inside baseboards or directly in fan coil units. Z-one valves are available with ½ to 1 inch press fittings, a copper tail-piece with union nut, making installation and maintenance fast, easy and efficient. Special slots in the EPDM O-ring allows fluid to leak during system testing if unpressed and provide a perfect leak proof seal when completely pressed. Some models are low-lead brass, for domestic hot water applications.

Features

• Two-way zone valve with Presscon™ fitting
• Spring return
• Normally closed actuator
• Auxiliary micro-switch
• Max body pressure: 300 psi
• Temperature range: 32—240°F
• Suitable fluids: water, 50% max. glycol, 15 psi max steam
• Power supply: 24 VAC
• Power consumption: 5 W, 7 VA
• Screw Terminal Connection
