Description

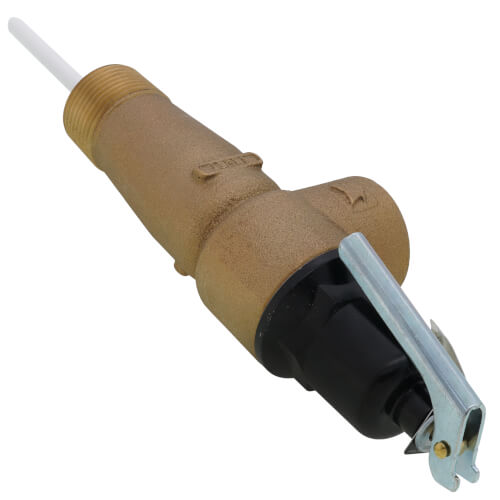

The FVX Series combination temperature and pressure relief valves are designed to offer high capacity protection for domestic and commercial water heating devices. The FVX Series Valves are fully automatic with the valves resetting after either temperature or pressure relief. The larger FVX Series Valves are well suited for such commercial applications as restaurants, hospitals and laundries. All FVX Series valves through 1-1/4" have coated thermal elements that protect against mineral build-up. The 1-1/2" and 2" valves have stainless steel elements. The FVX Series Valves are available with male (FVMX) or female (FVX) inlet connections and female only outlet connections.

Product Features
  • Offers high capacity protection for domestic and commercial hot water heating devices
  • The valves reseat automatically after either temperature or pressure relief
  • The larger series valves are well suited for commercial applications
  • Every valve is tested for performance prior to shipping

Specifications
  • Available Set Pressures 75-150 psi
  • Temperature Relief 210°F (98.9°C)
  • Service Hot water
Read more
Specs
Size:
1"
Connection Type:
Threaded
Inlet Type:
MNPT
Outlet Type:
FNPT
Max Temp (F):
210°F
Pressure Range:
75 to 150 psi
Pressure Set Point:
150 psi
CSA Rating (BTU/HR):
500000
ASME Rating (BTU/HR):
2155000
Lead Free:
Yes
Thermostat Length:
3"
×
