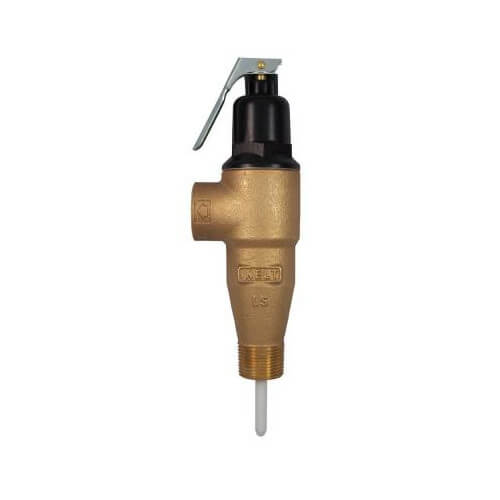

3/4" FVMX-1LS Commercial T&P Relief Valve, Lead Free (Male Inlet)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$544.30 each
In Stock
Get 1 Tue, Apr 22
Order by 5PM, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
MNPT
FNPT
150 psi
210°F Max Temp
Threaded Connection
Description
–
Please note: Thermostat Length in the Specs box is an approximation. The exact measurement is 1-15/32"
The Cash Acme FVX Series combination temperature and pressure relief valves are designed to offer high capacity protection for domestic and commercial water heating devices. The Cash Acme FVX Series is fully automatic, and the valves reseat after either temperature or pressure relief.
All Cash Acme FVX Series Valves through 1-1/4" have coated thermal elements to protect against corrosion and mineral build-up. The coating also isolates the copper from galvanic action within the heater.
Features:
The Cash Acme FVX Series combination temperature and pressure relief valves are designed to offer high capacity protection for domestic and commercial water heating devices. The Cash Acme FVX Series is fully automatic, and the valves reseat after either temperature or pressure relief.
All Cash Acme FVX Series Valves through 1-1/4" have coated thermal elements to protect against corrosion and mineral build-up. The coating also isolates the copper from galvanic action within the heater.
Features:
- Offers high capacity protection for domestic and commercial hot water heating devices: Handles more volume with just one relief valve
- Completely automatic: The valves reseat after either temperature or pressure relief
- The larger series valves are well suited for commercial applications: Restaurants, hospitals and laundries are no problem!
- Listed by CSA and ASME: Inspector friendly, peace of mind
Specs
–
| Size: | 3/4" |
|---|---|
| Thermostat Length: | 1-1/2" |
| Connection Type: | Threaded |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Max Temp (F): | 210°F |
| Pressure Range: | 75 to 150 psi |
| Pressure Set Point: | 150 psi |
| CSA Rating (BTU/HR): | 185000 |
| ASME Rating (BTU/HR): | 1912000 |
| Lead Free: | Yes |
