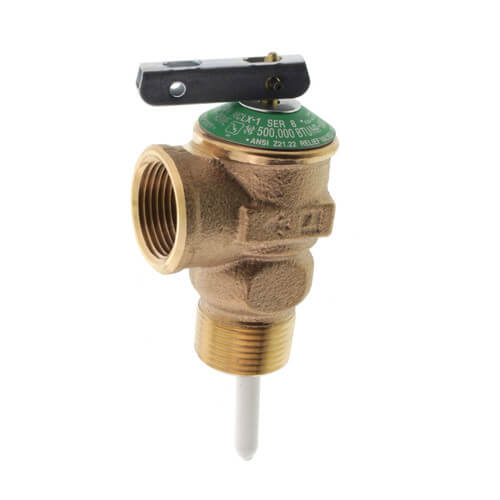

3/4" NCLX-1 Domestic T&P Relief Valve, Lead Free (1" Element)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.51 each
In Stock
Get 13 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 16487-0150
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
MNPT
FNPT
150 psi
210°F Max Temp
Threaded Connection
Description
–
Please note: Thermostat Length in the Specs box is an approximation. The exact measurement is 1-5/16"
The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). Cast bronze body with male inlet and female outlet, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. Test lever standard. Temperature relief setting is 210°F (99°C).
Application:
Temperature and pressure protection for domestic water heaters and storage tanks.
Features:
The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). Cast bronze body with male inlet and female outlet, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. Test lever standard. Temperature relief setting is 210°F (99°C).
Application:
Temperature and pressure protection for domestic water heaters and storage tanks.
Features:
- Completely automatic and reseats after temperature or pressure relief. Ideal for all domestic water heater applications
- Incorporates an inert thermal element coating - Provides effective isolation from mineral deposits (liming) and galvanic corrosion
- 1" Element
- Approvals - The NCLX valves are certified to ANSI Z21.22 / CSA 4.4 and capacity certified to ASME Boiler Code Section IV (1/2" sizes ANSI / CSA listed only).
Specs
–
| Size: | 3/4" |
|---|---|
| Connection Type: | Threaded |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Max Temp (F): | 210°F |
| Pressure Set Point: | 150 psi |
| CSA Rating (BTU/HR): | 95000 |
| ASME Rating (BTU/HR): | 500000 |
| Thermostat Length: | 1" |
