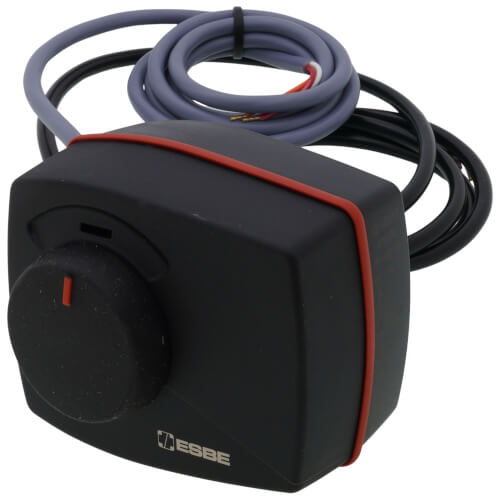

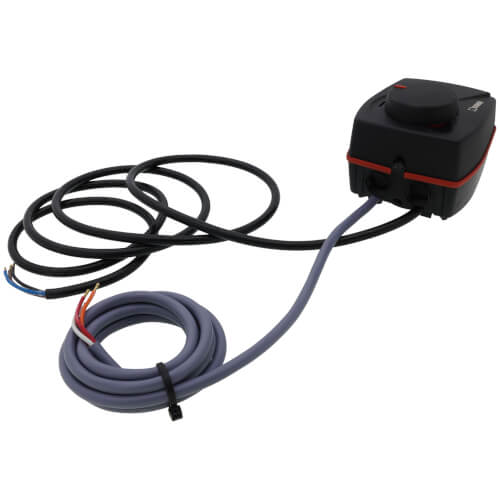

ESBE ARA664 Series Floating 3-Point Signal Motor Actuator w/ VRG

The ARA 600 series of motor actuators replaces the Series 60 of 24V motor actuators mounted to ESBE 3 way and 4 way rotary valves. Incorporated into the redesign of the ARA motor actuators are improvements in the mounting and operation of the motor actuator resulting in a simpler and quicker installation. These redesigned direct mounted motor actuators are capable of mounting to the new VRG styles of 3 & 4-way rotary valves. In addition, the ARA 600 series are also backward compatible to the older MG and G series of valves. The ARA 600 series is available in floating 3-point with or without an auxiliary switch and proportional, which cross over to the Series 60 actuators. However there are additional varieties of actuators to select from a 2-point actuator to different run time options. This variety of selections provides flexibility in application selecting.

Product features

• Fewer parts and tools required for installation
• Increased stabilization between actuator and valve
• Backward compatible with MG and G series of 3 & 4-way rotary valves
• Reduced profile and size of motor actuator
• Easier mounting procedure
• 3-Point Floating Signal, 24VAC
