Pivotal Monitor 17 Series H2Okinetic Shower Trim (Matte Black), T17299-BL

The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. Delta H2Okinetic Showers look different because they are different. Using advanced technology, H2Okinetic showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.

Features:

• Trim kit only, must order MultiChoice universal valve separately to complete the unit

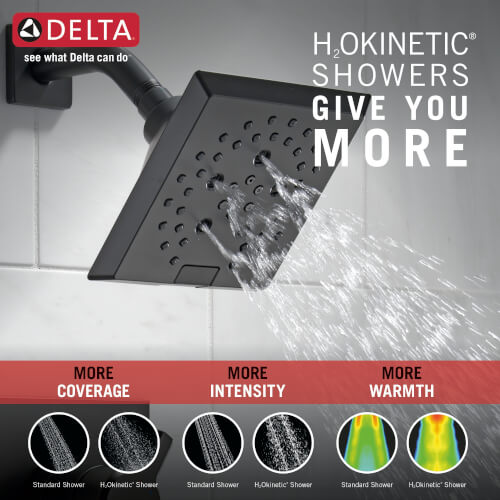

• H2Okinetic shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
• Gives you the feeling of more water without using more water
• Spray settings include: full body spray, H2Okinetic spray, full spray with massage, massage spray, and pause
• Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• Back-to-back installation capability
• Solid brass forged body
• Red/blue pad print temperature indicators on temperature adjustment dial
• ADA compliant

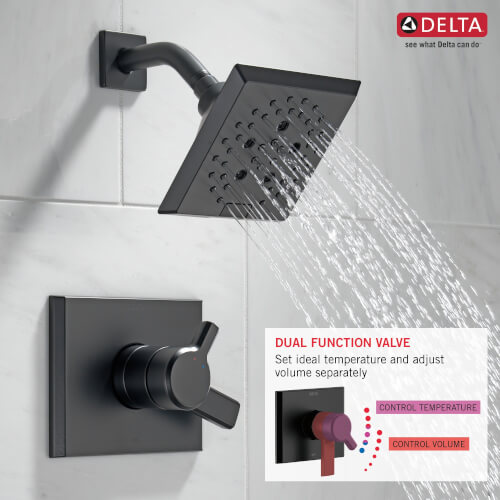

• Control volume and water temperature independently with 2 separate handles for more refined control of your shower experience

Standard Specifications:

• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX

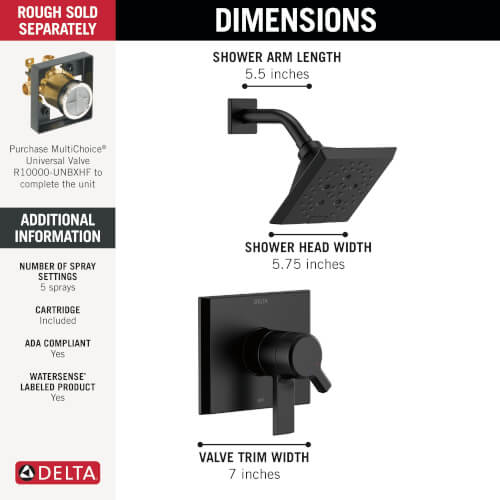

• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• Red/blue pad print temperature indicators on temperature adjustment dial
• Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness. RP77992 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
