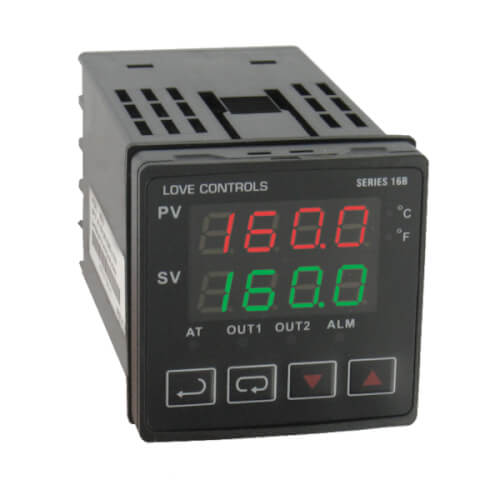

1/16 DIN Temperature/Process Controller, Relay Output 1 & 2 (100 to 240 VAC)

Applications:

• Control temperature for boilers, damper control based on temperature or pressure.
• Hot plates/melt pots.
• Packaging equipment.
• Environmental chambers.
• Medical equipment.
• Food service equipment.

Features:

• Universal input accepts process transmitters, RTD's or thermocouple signals
• On/off, PID, or manual output control
• RS-485 standard on all models
• Stage control program for up to 64 ramp/soak actions

Specifications:

• Inputs: Thermocouple, RTD, DC voltages or DC current.
• Display: Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
• Accuracy: +/-0.25% span, +/-1 least significant digit.
• Supply Voltage: 100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model).
• Power Consumption: 5 VA max.
• Operating Temperature: 32 to 122°F (0 to 50°C).
• Memory Backup: Nonvolatile memory.
• Control Output Ratings: Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
• Communication: RS-485 Modbus® A-5-11/RTU communication protocol.
• Weight: 4 oz (114 g).
• Agency Approvals: CE, RoHS, cUL, UL.
• Front Panel Rating: IP56.
