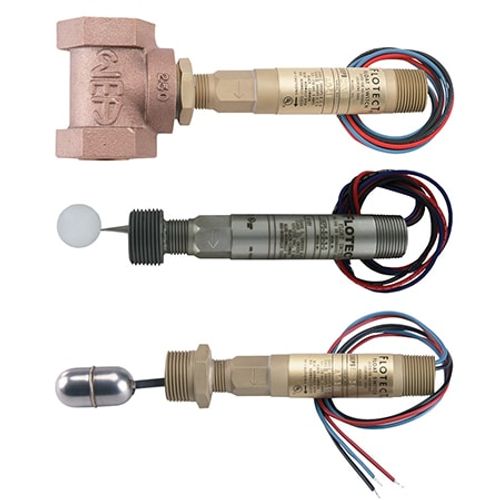

Brass External Float Chamber Liquid Level Switch, Polypropylene Spherical Float

The Series L6 Flotect Liquid Level Switches are rugged and reliable float switch which operates automatically to indicate tank level. It is offered with a 303 SS or brass body with spherical or cylindrical float options.

Features:

• Compact design is built for years of trouble-free service
• Simple and dependable operation with no mechanical linkage
• Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
• Leak proof lower body machined from bar stock
• Side wall or direct tee mounting options available to act as an external float chamber
• Weatherproof and explosion-proof body for demanding outdoor applications
• Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
• Sensitive to level changes of less than 1/2" (12 mm)
