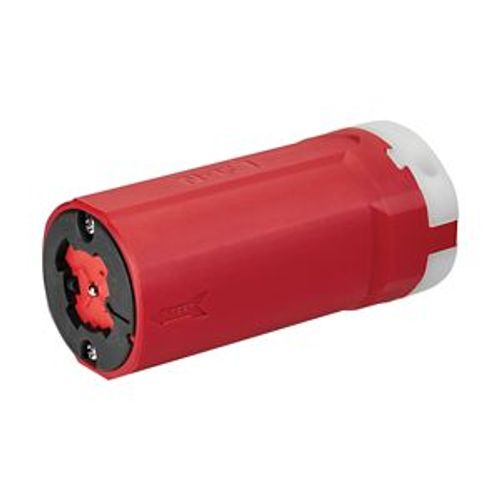

Arrow Hart Locking Connector, #12-4 Awg, 30A, 480V, Back Wiring, Red, White, 3-Pole, 4-Wire, AHPL20444N
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$157.84 each
Backorder
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Red, White
30 Amps
Glass Filled Nylon
480V
Description
–
Eaton Arrow Hart locking connector , #12-4 AWG, 30A, Industrial, 480V, Back wiring, Red, white, Brass, Ultra grip, Non-NEMA, Three-pole, Four-wire, Nylon
Arrow Hart power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contacts.
Power lock devices are designed for safety, energizing within a chamber to eliminate the possibility of exterior arcing
Ideal for high-abuse industrial applications
Arrow Hart power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contacts.
Power lock devices are designed for safety, energizing within a chamber to eliminate the possibility of exterior arcing
Ideal for high-abuse industrial applications
Specs
–
| Color: | Red White |
|---|---|
| Product Type: | Locking Connector |
| Amperage: | 30 |
| Material: | Glass Filled Nylon |
| Voltage: | 480V |
| AWG: | 12-4 |
| Type: | Power Lock Connector |
| Poles: | 3 |
| Wiring: | Back |
| Application: | Industrial |
