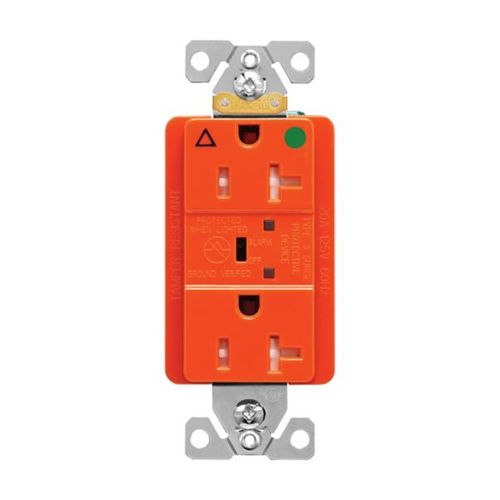

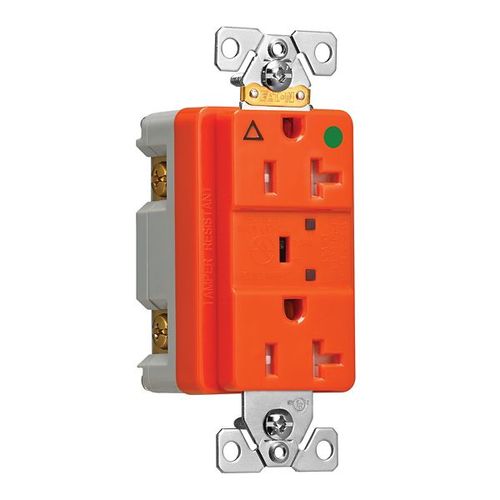

Tvss Receptacle, Ig, Hg, Led Indicat & Alarm, #14-#10 Awg 20A, 840J, Orange, Straight Blade, TRIG8362RNS
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$88.70 each
Backorder
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic
Wall, Flush
Orange
125v
20 Amps
Hospital
Description
–
Eaton TVSS receptacle, IG, HG, LED indicat and alarm, #14 - #10 AWG, 20A, Comm specif, Wall/flush mnt, Bk and sd wire, 840J, 2 recept, -40° to 60°C, Orange, Brs, Strght blade, Hi-impct resist thermpls/nylon, 5-15R, Dplx 756757 756757
Ideal for protecting sensitive electronic equipment, Eaton's Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.
Available in hospital and commercial grades in 15A and 20A, 125V configurations with LED, audible alarm and isolated ground versions
8-hole back and side wire
Provides surge protection for hot to neutral, hot to ground and neutral to ground
Audible alarm signals when surge protection has expired
Green LED indicators to verify surge protection and wiring diagnostics
Ideal for protecting sensitive electronic equipment, Eaton's Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.
Available in hospital and commercial grades in 15A and 20A, 125V configurations with LED, audible alarm and isolated ground versions
8-hole back and side wire
Provides surge protection for hot to neutral, hot to ground and neutral to ground
Audible alarm signals when surge protection has expired
Green LED indicators to verify surge protection and wiring diagnostics
Specs
–
| Poles: | 2 |
|---|---|
| Application: | Hospital |
| Wiring: | Back And Side |
| NEMA Rating: | 5-20R |
| Material: | Thermoplastic |
| Mount: | Wall Flush |
| Color: | Orange |
| Voltage: | 125v |
| Product Type: | Tvss Receptacle |
| AWG: | 14-10 |
| Type: | 2-Pole 3-Wire Grounding Straight Blade |
| Amperage: | 20 |
| Grade: | Hospital |
