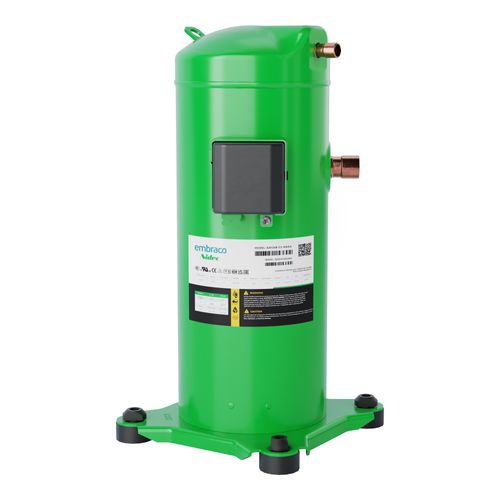

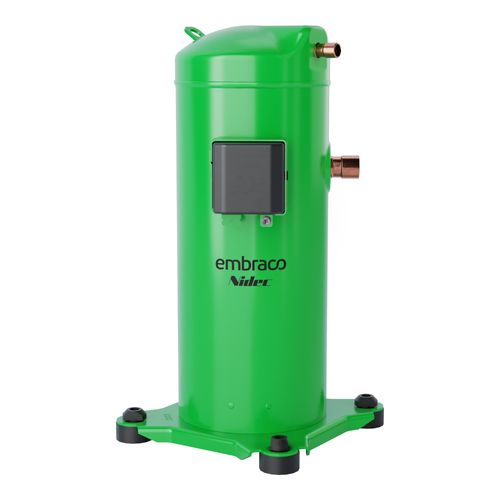

1.7 Ton R-410A Scroll Compressor, 1 PH, 60 Hz (208-230V)

The Embraco EAF22H-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 1.7 ton (22,462 BTU/h at AHRI 540 HBP conditions) on R-410A refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.

Features:

• 1.7 ton nominal capacity (22,462 BTU/h, AHRI 540 HBP)
• R-410A refrigerant, 208-230V / 60 Hz / single phase
• Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
• UL certified for sale in the USA
• Brazed suction and discharge connections; IP21 terminal block
• Suits residential central ducted A/C systems and packaged rooftop systems
• Direct replacement for Copeland ZP20K5E-PFV, ZP20K6E-PFV, ZP20K7E-PFV, ZP20KAE-PFV, ZP20KEE-PFV, ZP21K5E-PFV, ZP21K6E-PFV, ZP21K7E-PFV, ZP21LXE-PFV, ZP22K6E-PFV, ZP22KME-PFV; Arrco AA20KP-BFV; LG APA024KA, APG020KA, APG020KB, APG021KB
• Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
• Optional crankcase heater, capacitor and noise jacket available
