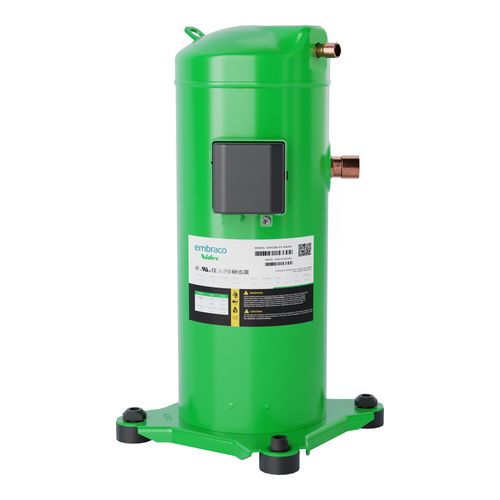

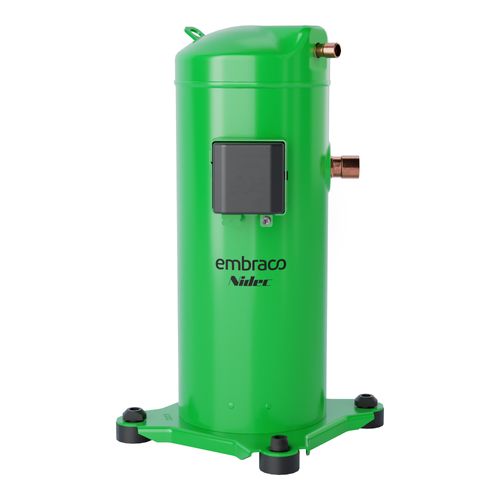

2 Ton R-22 Scroll Compressor, 1 PH, 60 Hz (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$983.46 each
Backorder
MANUALS (2)
Lift Gate
–
This product weighs 59.5 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2
208-230v
R-22
Description
–
The Embraco EAF25E-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 2 ton (26,084 BTU/h at AHRI 540 HBP conditions) on R-22 refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.
Features:
Features:
- 2 ton nominal capacity (26,084 BTU/h, AHRI 540 HBP)
- R-22 refrigerant, 208-230V / 60 Hz / single phase
- Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
- UL certified for sale in the USA
- Brazed suction and discharge connections; IP21 terminal block
- Suits residential central ducted A/C systems and packaged rooftop systems
- Direct replacement for Copeland ZR26K3-PFV; Arrco AR24KP-BFV, AR26KP-BFV; LG SQA026KAB
- Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
- Optional crankcase heater, capacitor and noise jacket available
Specs
–
| Ton: | 2 |
|---|---|
| Voltage: | 208-230v |
| Refrigerant Type: | R-22 |
| Phase: | 1 |
| Hertz: | 60 |
| Product Type: | Compressor |
