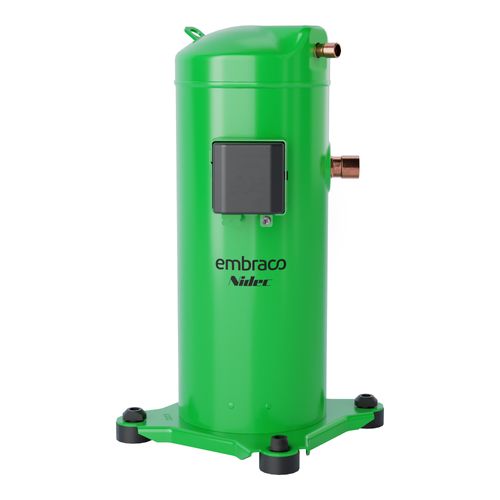

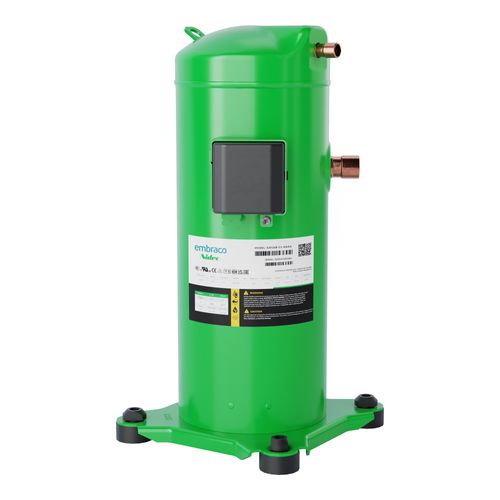

2 Ton R-410A Scroll Compressor, 1 PH, 60 Hz (208-230V)

The Embraco EAF25H-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 2 ton (25,204 BTU/h at AHRI 540 HBP conditions) on R-410A refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.

Features:

• 2 ton nominal capacity (25,204 BTU/h, AHRI 540 HBP)
• R-410A refrigerant, 208-230V / 60 Hz / single phase
• Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
• UL certified for sale in the USA
• Brazed suction and discharge connections; IP21 terminal block
• Suits residential central ducted A/C systems and packaged rooftop systems
• Direct replacement for Copeland ZP23K3E-PFV, ZP23K6E-PFV, ZP24K5E-PFV, ZP24K6E-PFV, ZP24K7E-PFV, ZP25K5E-PFV, ZP25K6E-PFV, ZP25K7E-PFV, ZP25LXE-PFV, ZP26K6E-PFV, ZP27K6E-PFV, ZP27KHE-PFB; Arrco AA23KP-BFV, AA25KP-BFV; LG APA026KA, APG024KA, APG024KB, APG025KA
• Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
• Optional crankcase heater, capacitor and noise jacket available
