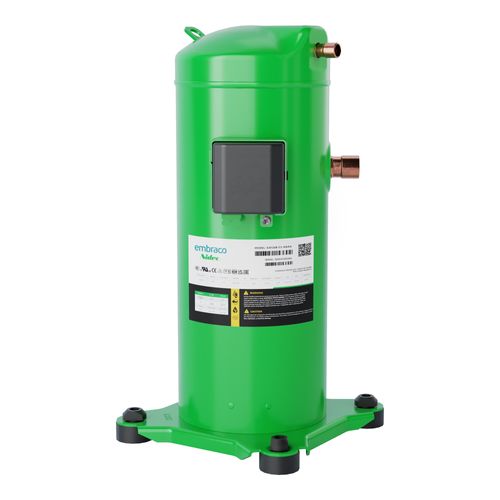

2.6 Ton R-410A Scroll Compressor, 1 PH, 60 Hz (208-230V)

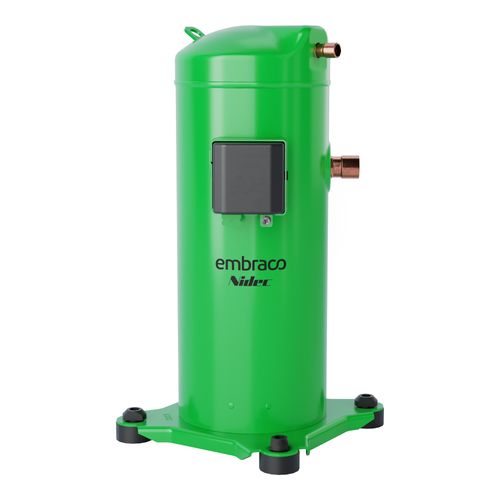

The Embraco EAF32H-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 2.6 ton (30,475 BTU/h at AHRI 540 HBP conditions) on R-410A refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.

Features:

• 2.6 ton nominal capacity (30,475 BTU/h, AHRI 540 HBP)
• R-410A refrigerant, 208-230V / 60 Hz / single phase
• Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
• UL certified for sale in the USA
• Brazed suction and discharge connections; IP21 terminal block
• Suits residential central ducted A/C systems and packaged rooftop systems
• Direct replacement for Copeland ZP28K5E-PFV, ZP28K6E-PFV, ZP28KHE-PFB, ZP29K5E-PFV, ZP29K6E-PFV, ZP29K7E-PFV, ZP29LXE-PFV, ZP31K5E-PFV, ZP31K6E-PFV, ZP31K7E-PFV, ZP31KEE-PFV, ZP31LXE-PFV, ZP32K6E-PFV; Arrco AA28KP-BFV, AA31KP-BFV; LG APA029KA, APA030KA, APA032KA, APG029KA, APG031KA
• Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
• Optional crankcase heater, capacitor and noise jacket available
