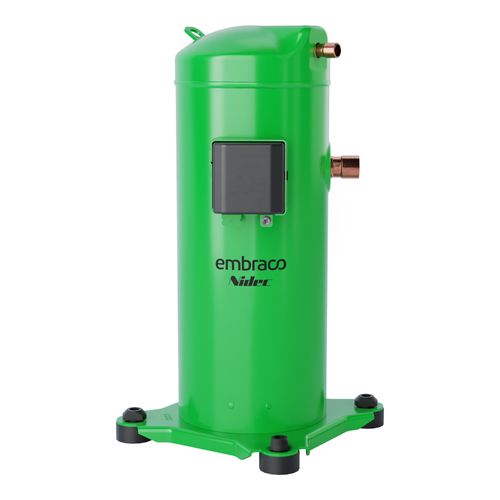

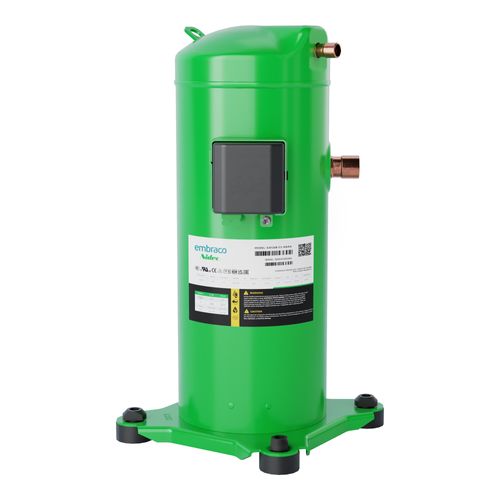

3.5 Ton R-410A Scroll Compressor, 1 PH, 60 Hz (208-230V)

The Embraco EAF42H-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 3.5 ton (43,118 BTU/h at AHRI 540 HBP conditions) on R-410A refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.

Features:

• 3.5 ton nominal capacity (43,118 BTU/h, AHRI 540 HBP)
• R-410A refrigerant, 208-230V / 60 Hz / single phase
• Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
• UL certified for sale in the USA
• Brazed suction and discharge connections; IP21 terminal block
• Suits residential central ducted A/C systems and packaged rooftop systems
• Direct replacement for Copeland ZP39K5E-PFV, ZP40K6E-PFV, ZP40K7E-PFV, ZP41K7E-PFV, ZP42K5E-PFV, ZP42K6E-PFV, ZP42K7E-PFV, ZP42LXE-PFV, ZP44K5E-PFV; Arrco AA39KP-BFV, AA42KP-BFV; LG ABA039KA, ABA042KA, ABG039KA, ABG042KA, ABT042KT
• Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
• Optional crankcase heater, capacitor and noise jacket available
