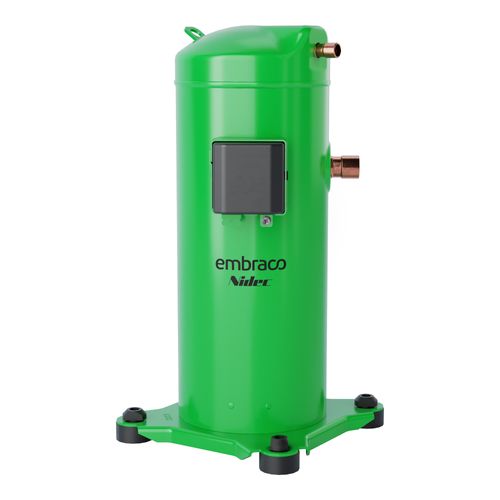

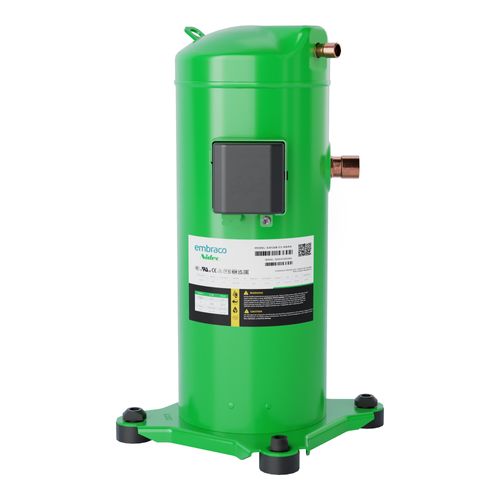

4 Ton R-410A Scroll Compressor, 1 PH, 60 Hz (208-230V)

The Embraco EAF49H-C1-NABA is a fixed-speed scroll compressor for residential and light commercial air conditioning, rated 4 ton (49,277 BTU/h at AHRI 540 HBP conditions) on R-410A refrigerant at 208-230V, 60 Hz, single phase. It is part of Embraco's UL-certified Scroll portfolio for the North American replacement market and ships with the spare parts and a model-specific re-piping kit needed for a straightforward changeout.

Features:

• 4 ton nominal capacity (49,277 BTU/h, AHRI 540 HBP)
• R-410A refrigerant, 208-230V / 60 Hz / single phase
• Fixed-speed scroll technology - reliable, highly efficient and quiet in operation
• UL certified for sale in the USA
• Brazed suction and discharge connections; IP21 terminal block
• Suits residential central ducted A/C systems and packaged rooftop systems
• Direct replacement for Copeland ZP49K5E-PFV, ZP49K6E-PFV, ZP49K7E-PFV, ZP51K5E-PFV, ZP51K6E-PFV, ZP51K7E-PFV, ZP51LXE-PFV; Arrco AA49KP-BFV, AA51KP-BFV; LG ABA049KA, ABA051KA, ABG049KA, ABG051KA, ABT048KT, ABT051KT
• Supplied with E-box, T terminal, 4 grommets, 4 sleeves and a model-specific re-piping kit
• Optional crankcase heater, capacitor and noise jacket available
