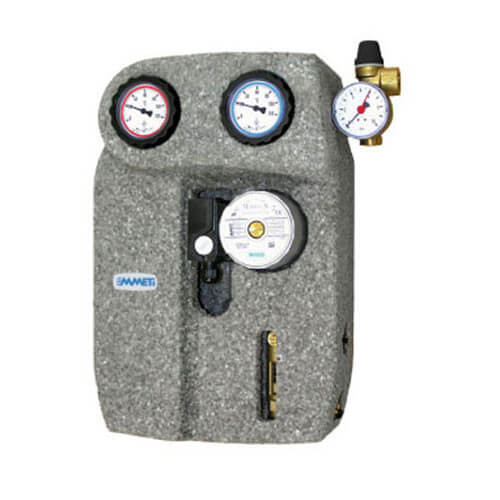

Solar System Kit GSN 12 NA

110V - 60 Hz - can be used together with Solar Regulator

Return:

• Combined measurement device of flow rate and temperature VFS with system discharge valve.
• Flanged ball valve, 3-way, DN 20 with non-return valve 10 mbar (the non-return valve can be bypassed by turning the handle 45 °) provided with handle-thermometer with blue ring;
• Safety group 87 PSI (6 bar) with pressure gauge 145 PSI (10 bar) with connection for expansion tank.
• Circulator pump 110 V 60 Hz av. Flow rate 4,4 gpm - 6,9 ft.
• Pipe fitting of 3/4" with system fill valve. 2 hose end included.

Flow:

• Flanged ball valve, with non-return valve (the non-return valve can be by passed by turning the handle 45°) provided with handle-thermometer with red ring;
• De-aeration device with manual bleed valve
• Fitting and connection tube
• Temperature probe in contact with the connection tube Solar unit ECS3, pre-wired, includes 3 probes with silicone cable with heat accounting function Insulation box in EPP. Components
