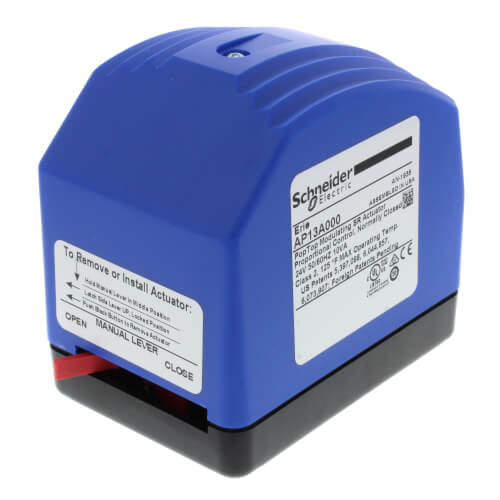

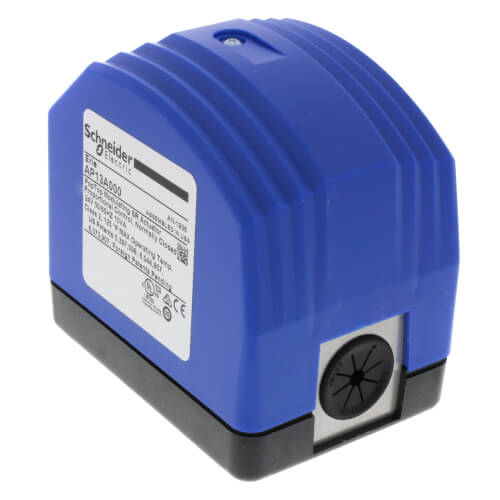

24V Proportional Modulating PopTop Spring Return Actuator (Normally Closed)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$210.40 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Normally Closed
Description
–
The AP series proportional and AT series floating
PopTop? actuators incorporate equal percentage flow
characteristics. The floating and proportional
actuators are designed to be used on the 1/2 to 1-
1/4 in. VM series valves for precise temperature control
of fluid flow in heating or cooling applications.
Features:
Features:
- Floating model is compatible with any 24 Vac three-wire signal.
- Proportional model compatible with any 0 to 10 Vdc or 4 to 20 mA controller.
- Spring return logic is only for emergency power loss.
- Microprocessor controlled (proportional only).
- Magnetic clutch to maximize the life of the motor and gear train.
- Manual operating lever/position indicator facilitates field setup.
- Easy to use lever terminal blocks.
- Returns actuator to normal position when power is lost for more than 2 seconds.
- Actuator can be installed after valve body.
Specs
–
| Voltage: | 24V |
|---|---|
| Action: | Spring Return |
| Position: | Normally Closed |
| Actuator Type: | Proportional |
| Time Out: | No |
| Wiring: | No Leads |
