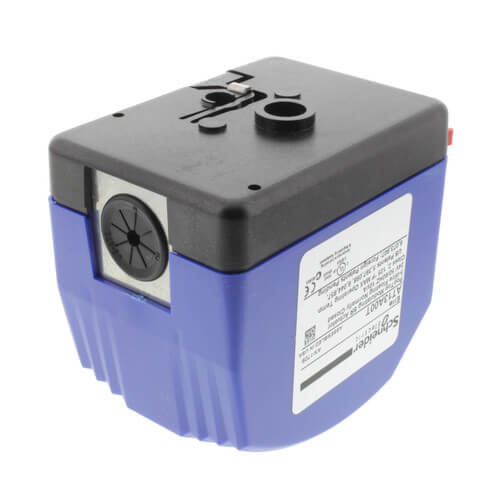

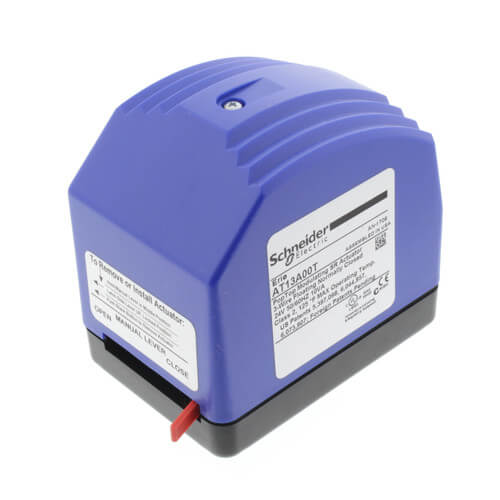

24V Normally Closed 3-Wire Floating Modulating PopTop with Time-Out Actuator
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$188.71 each
In Stock
Get 9 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Normally Closed
Description
–
Note: Valve must be purchased separately.
The PopTop series valve bodies and actuators provide easy installation for a variety of heating and cooling applications.
The AP series proportional and AT series floating PopTop actuators incorporate equal percentage flow characteristics. The floating and proportional actuators are designed to be used on the 1/2 to 1- 1/4 in. VM series valves for precise temperature control of fluid flow in heating or cooling applications. See valve section for details.
The valve's actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
Features:includes auxiliary
Synchronous motor drive with spring return.
Variety of voltages available.
Mounts directly onto the body without the need for linkages
or calibration.
Manual override lever on normally closed actuators.
3-wire floating
20 mA proportional control
Magnetic clutch to maximize motor life
and gear train
Manual override
Position indicator
Thermoplastic enclosure
UL Listed
The PopTop series valve bodies and actuators provide easy installation for a variety of heating and cooling applications.
The AP series proportional and AT series floating PopTop actuators incorporate equal percentage flow characteristics. The floating and proportional actuators are designed to be used on the 1/2 to 1- 1/4 in. VM series valves for precise temperature control of fluid flow in heating or cooling applications. See valve section for details.
The valve's actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
Features:
Specs
–
| Voltage: | 24V |
|---|---|
| Action: | Spring Return |
| Actuator Type: | 3-Wire Floating |
| Time Out: | Yes |
| Position: | Normally Closed |
| Wiring: | No Leads |
