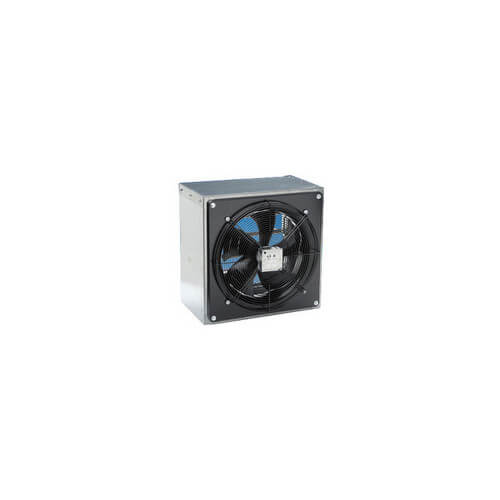

FADE Series Axial Fan, 25" Impeller, 6 Pole (Fully Assembled)
Hover image to zoom

FADE Series Axial Fan, 25" Impeller, 6 Pole (Fully Assembled)

Brand:
Fantech
SKU:
FADE25-6WHD
Rating:
(0)
Q&A:
(0)
FADE Series Axial Fan, 25" Impeller, 6 Pole (Fully Assembled)
Hover image to zoom
$1,826.77 each
Backorder
Backorder
Get it Thu, Jun 27 - Tue, Jul 30

Lift Gate

This product weighs 125 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
115V
RPM icon
1000 RPM
Air Flow Capacity (CFM) icon
7858 CFM
Max. Amps icon
10.38
Warranty icon
3 Year Warranty

Description

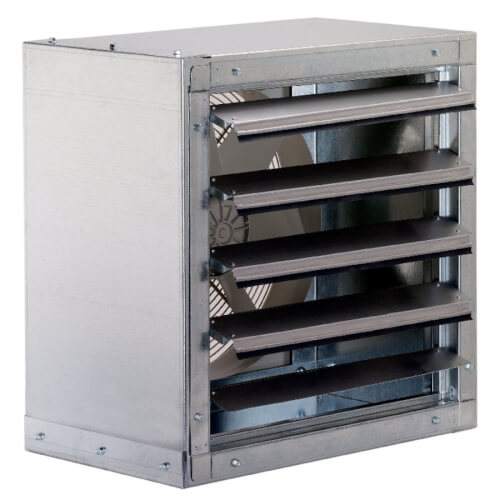

Fantech's FADE Series axial fans are designed to effectively and quietly handle major ventilation challenges in locations such as large warehouses without taking up a lot of valuable space. The WHD FADE Series models come fully assembled with housing and damper.

All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature heavy gauge galvanized steel, baked powdercoat finish. Propeller options are formed steel blades featuring an "S" blade design or die-cast aluminum with an "A" blade design.

Features:
  • Permanently lubricated sealed ball bearings
  • 100% speed controllable for highly efficient and economical airflow
  • Suitable for airstream temperatures up to 100° F
  • Integral blades and external rotor for precision balancing
  • Formed galvanized steel wall panel with venturi features baked powdercoat finish
  • Shallow profile with no protruding motor
  • Terminal box with prewired electrical strip
  • Three-year warranty

Specs

Impeller:

25"

Poles:

6

Blade Type:

A

Blade Material:

Die-Cast Aluminum

Voltage:

115V

Hertz:

60

Phase:

1

RPM:

1000

Air Flow Capacity (CFM):

7858

Max. Watts:

1134

Max. Amps:

10.38

Housing Material:

Galvanized Steel

Warranty:

3 Year
