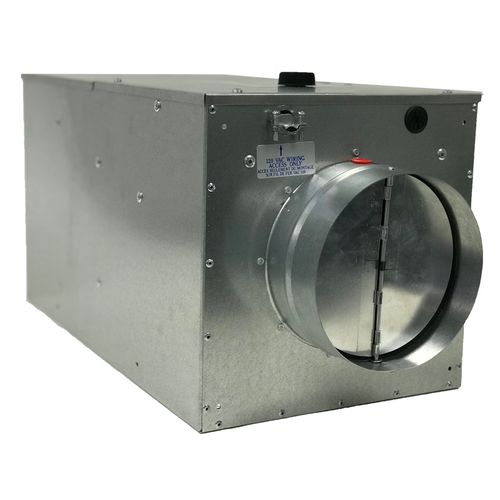

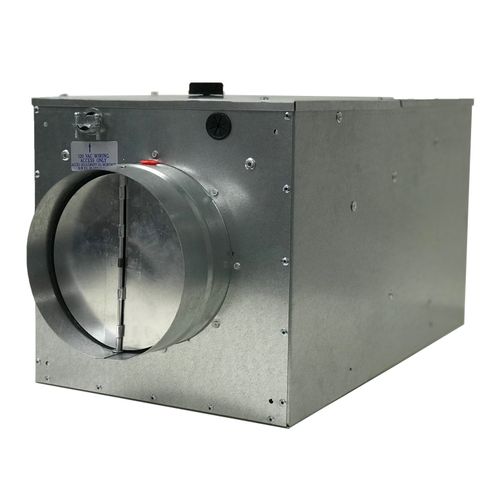

FAPV-180AC Fresh Air Power Ventilator, fits 10" x 10" x 2" air filter, MERV6

The FAPV (Fresh Air Power Ventilator) is an in-line duct connected fan that provides fresh outdoor air to meet indoor ventilation code requirements and occupant preferences. Managed mechanical Fresh Air Ventilation improves air quality by diluting the indoor air with fresh outdoor air that is of significantly lower concentration of contaminants. Fresh Air Ventilation and Make Up Air can help stabilize the pressurization of the home eliminating the potential for contaminants to enter the home through uncontrolled areas of filtration.

The FAPV may be set to run either continuously or to run intermittently as controlled by a fresh air ventilation controller such as the Field Controls model FAVC (Fresh Air Ventilation Controls). The FAPV includes an electronic speed control with a readily accessible Off switch that may be used to meet either the continuous ventilation rate or equivalent intermittent ventilation, the speed control feature may also be used to reduce the outdoor airflow rate and help meet the minimum return temperature requirements of HVAC systems.

The FAPV include a MERV 6 washable air filter, as well as an internal slot for easy slide-in installation of a standard size 10" x 10" x 2" air filter. Also included is a passive airflow-operated backdraft damper, which may be required by code for installation of a ventilation system air inlet duct.
