SC460, Wireless Clamp Meter
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
SC460 has been discontinued
Discontinued September 22, 2020
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Description
–
What's Included:
Overview:

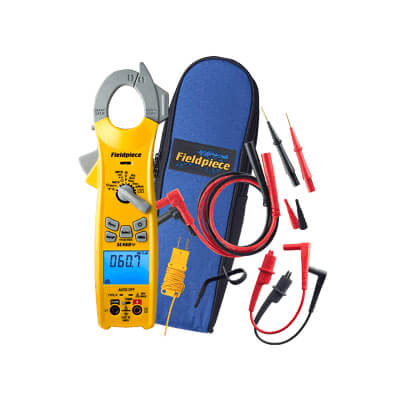

- SC460 Wireless Clamp Meter
- ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
- ASA2 Alligator Clips
- 1 ATB1 Type K Thermocouples
- 1 Velcro Straps
- 9V Alkaline Battery (not installed)
- ANC12 Padded Case
- Operator's Manual
Overview:
- Job Link® System Mobile Capability via JL2 Transmitter: Send and save electrical measurements to Job Link® System mobile app via the JL2 long range transmitter for professional reporting. Plus, calculate power (kW) and system efficiency (EER and SEER) for in depth understanding of system performance in real world conditions. (SDP2 needed for system efficiency calculations.)
- Electrical Testing for HVACR: True RMS readings through the clamp or leads. Inrush current mode to capture starting amps.
- Test 3-Phase Power Test: Conveniently test phase rotation without carrying an extra meter or lead.
- Rugged Dual Display: Broad temperature range tolerance allows for testing in freezers and on rooftops.
- Capacitance: Test questionable motor start and run capacitors. Determine when a capacitor needs to be replaced.
- Wireless Testing: Send measurements to the Job Link Mobile App via JL2 transmitter. Or view measurements from other compatible tools (ET2W, EH4W, SC57, LT17AW, SC460, SC660) across the jobsite LIVE.
- Magnetic Hanger: Hanging strap flips out to keep the meter locked in place.
- Trusted Temp: Reliable temperature in fast changing environments
- Hold/Max/min.
- High voltage LED and beeper warning.
- Non contact voltage LED and beeper.
- Continuity LED and beeper.
- Diode test.
- Easy temp cal.
- Microamps DC.
- Frequency (Hz) through the clamp.
- Low ohm range for motor windings.
- Read up to 400AAC.
- 0.01AAC resolution.
- Backlit display.
- Auto-Power-Off.
- NIST traceable.
Specs
–
| Type: | Clamp Meter |
|---|---|
| Display: | 10000 count dual display w/ backlight |
| Application: | HVAC |
| Range: | 75 Ft. (Wireless) |
| Accuracy: | Stated accuracy at 73°F ±9°F, <75% relative humidity |
| Altitude: | 6562 ft. |
| Auto-Off: | 30 minutes (approx) |
| Operating Environment: | 32°F to 122°F at <70% R.H |
| Overrange: | "OL" or "-OL" displayed |
| Temperature Coefficient: | 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50°C (82°F to 122°F)] |
| Battery Type: | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery Life: | 100 hours typical |
| Measurement Rate: | 3.3 times/sec nominal |
| Features: | True RMS, Backlight |
