Tight-Fit Kit for PTACs and Fan Coil Units w/ 2 Year Lamp (110-277 VAC)

Tight-Fit Kit makes it possible to realize all the benefits of germicidal UV light in limited space applications including most of the fan coil units and PTACs found on the market today. Tight-Fit Kit features a low-profile lamp on a metal shield with mounting magnets. This allows the UV light to be placed precisely for optimum UV exposure particularly where space is limited. Light is not visible when installed properly.

Product Features

• Ideal for PTACs and Fan Coil Units
• Compact remote mountable lamp
• Magnetic mounting shield
• 110-277 VAC electronic power supply
• 2 Year UVC lamp life

Product Specifications

• UV Lamp: 254 nm germicidal UVC, quartz hot filament
• Lamp & Shield Dimensions : 11”L x 1” Dia.
• ST Power Supply Dimensions: 5.0”W x 1.1” H x 2.4”D
• ST line-voltage: 110-277 VAC, 50/60 Hz
• Electrical: 0.51 Amps/120V Thru 0.22 Amps/277V
• Power Supply Dimensions: 5.0”W x 1.1” H x 2.4”D
• UV Lamp & Shield Dimensions : 17” x 1”
• Magnet Dimensions: 1.4” Dia
• Weight: 1 lb.
• Warranty: Lifetime for all parts except lamp

Kit Includes

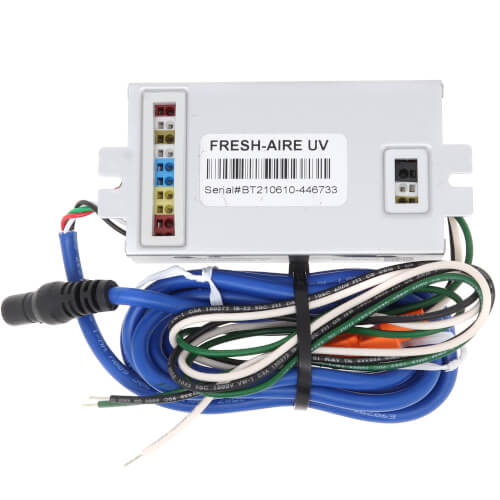

• Power Supply
• 6’ Lamp Cable
• UV Lamp
• UV Lamp Shield
• Magnetic Mounting Hardware
• Panel Indicator
