We no longer carry AOU24CL
Unavailable since November 4, 2011
MANUALS (2)
Product Highlights
–
24200 BTUs
18 Rating
1
No
R-410A
6 Year (Compressor)/ 2 Year (Parts) Warranty
Description
–
Stylish, slim and elegant, these popular cooling-only wall mounted units are designed for single rooms. Indoor units have a clean, aesthetic design and are small but mighty and shorter in length than competing units, helping them blend into any room. Ideal for spaces requiring additional capacity but are limited on space. The flexibility of the variable speed compressor helps systems adapt to shifts in heat load by additional guests or afternoon sun.
Features
Features
- Inverter Technology - Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners.
- Inverter Control - The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much less expensive to run.
- Clean Air - All of the wall mounted cooling-only units feature both an Apple-Catechin Filter and an Ion Deodorizing Filter. The Apple-Catechin Filter absorbs dust, mold spores and microorganisms by static electricity. Growth is inhibited and deactivated by the polyphenol ingredient extracted from apples. The Ion Deodorizing Filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine particle ceramic.
- Quiet Operation - Wall mounted systems include an extra quiet fan speed ("Quiet Mode") to make sure that you are not disturbed.
- Wireless Remote Controller - Comfort control is at your fingertips with the standard wireless remote controller
- Cooling BTU/h: 24,200
- Outdoor Design Temp F DB/WB: 95/75
- SEER: 18
- EER Clg: 10.5
- Power Supply (v): 208-230

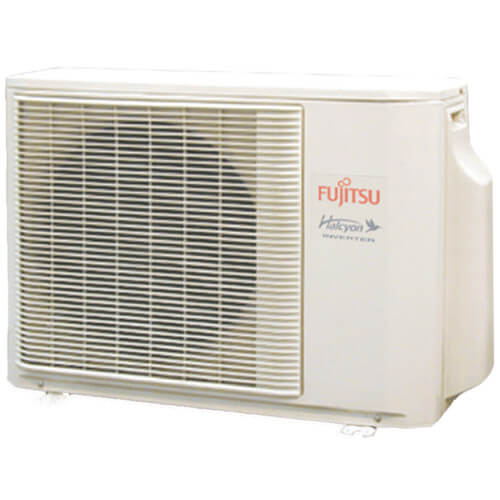

- Outdoor Unit
- Max Fuse Size (A): 29
- Min. Ampacity (A): 21
- Running Current Clg (A) Rated/Max: 10.1/12.0
- Weight: 97 lbs.
Refrigerant Line & Formula Specifications-
Pipe Size: Liquid = 1/4", Suction = 5/8"
- Max. Length Each Pipe: 49 ft.
- Max. Elevation: 68 ft.
- Additional Refrigerant: .22 oz/ft.
- Connection: Flare
Specs
–
| Cooling Capacity (BTU): | 24200 |
|---|---|
| EER: | 10.5 |
| SEER: | 18 |
| Application: | Cooling |
| Features: | 24 Hour Timer Apple Catechin Filter Ion Deodorizing Filter Sleep Timer Auto Restart/Reset |
| Number of Zones: | 1 |
| Energy Star Rated: | No |
| Refrigerant Type: | R-410A |
| Outdoor Dimensions (H x W x D): | 22-3/4" x 31-1/8" x 12-3/8" |
| Outdoor Voltage: | 208-230V |
| Outdoor Weight: | 97 lbs. |
| Warranty: | 6 Year (Compressor)/ 2 Year (Parts) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Awesome Heat Pump
I installed this unit to heat and cool my garage / workshop. Installation was very straightforward with the help of my local HVAC contractor to vacuum down the system and check proper operation at startup. I purchased the 15 ft lineset with the unit then had to add some 5/8" ID hose for a condensate drain, a 15A 2-pole breaker, and a local (outside) disconnect. I also bought a flex whip kit to connect from the disconnect to the outside unit. The manual shows either solid core or stranded wire to connect the outside unit to the wall unit inside. Since 4-conductor SJ cord was not readily available, I used exterior / underground 14/3 cable (the gray stuff, includes a ground) and had no problem. This unit has efficiency that is literally off the chart, both for heating and cooling. 25 SEER and 12 HSPF are well above the "best" on the government energy label. In addition the unit is so quiet that at first I didn't know it was running. Highly recommended!
Doogs
Hayward WI
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: What about the condensation, do you need to install a drain?
Asked by David 15 years ago
Add your answer
Verified Reply- PexSupply StaffA condensation line must be hooked up the the indoor unit. It should run outside or to a drain.
Was this review helpful to you?
Q: Do the indoor units need to be mounted high on a wall? I live in a story and a half Cape and would want to mount on the knee wall.
Asked by Brian 15 years ago
Add your answer
Verified Reply- PexSupply StaffIndoor units will work if mounted low on the wall, but function more effectively when placed higher. Mounting the units high on the wall brings about optimal air flow and prevents pet hair and other particles on the ground from being sucked into the unit.
Was this review helpful to you?
Q: dose this unit come filled with freon ?
Asked by joe 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the outdoor units come pre-charged.
Was this review helpful to you?
- Doogs
Yes, this unit is charged with 410A from the factory. I think your lines have to be over 45 feet before you need to add any.
Was this review helpful to you?
Q: Can the homeowner easily install these units?
Asked by AJ 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe recommend that only qualified professionals install these units.
Was this review helpful to you?
