Description

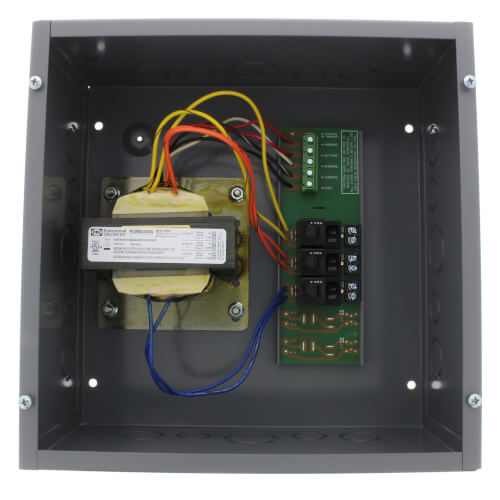

  • Transformer: One (1) 300 VA
  • Over Current Protection: Circuit Breaker
  • Frequency: 50/60 Hz
  • Primary: 480 / 277 / 240 / 120 Vac
  • Sub-Panel: Plenum Rated Polymetal
  • Housing: NEMA1 Metal Enclosure
  • Approvals: Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE, RoHS, Special
  • 3 Secondaries: 24 Vac, with LED Indicators / 4 Amp breaker for each output
  • 24 Vac ON/OFF: On / Off Switch & Breaker
  • Input: 480 / 277 / 240 / 120 Vac Finger-Safe Terminals, 8-18 AWG
  • Output: 3 Ungrounded, Isolated, 100 VA, Class 2, 24 Vac Outputs. Terminals accept 12-26 AWG wire.
  • Ambient Temperature Derating: 4A up to 40C ; 3A up to 50C; 2A up to 55C (When All 3 Outputs Operated Simultaneously)
Hide Description
Manuals (2)
Specs
Product Type:

Power Supply

Input:

120 Vac

480 Vac

277 Vac

240 Vac

VA Rating:

300

Frequency:

50-60 Hz

Power Supply:

Class 2

Enclosure Type:

NEMA-1

Type:

Single

×
