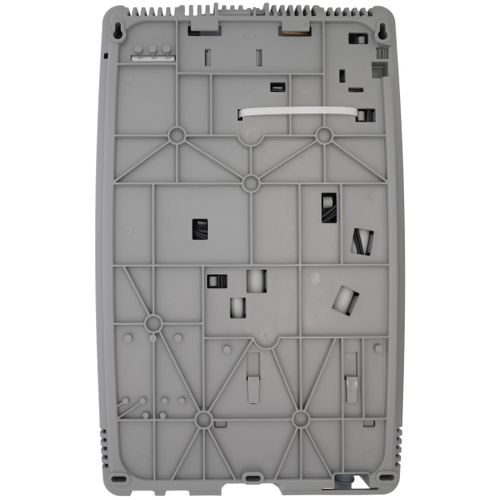

5500 Residential Whole-House Steam Humidifier (115/230V)

Maintain proper humidity throughout your entire home with the new GeneralAire® Steam Humidifier Model 5500. Protect your home and its contents while also offering you, your family, and your pets greater health and comfort.

In the box:

• Steam Humidifier,
• GFX4 Automatic Digital Control,
• Installation Manual, Installation/ Mounting Screws,
• Power Wire Clamps,
• Mounting Straps,
• Installation Kit.

Specifications

• Type: electrode steam
• Gallons Per Day: 115V = 15; 230V = 28.5
• Power: 115 / 230V (internal switch selector)
• Dimensions (Inches): 21 H x 14 W x 8.25 D
• Weight (pounds): 16
• For home sizes up to 5500 square feet
• Replacement Cylinder: Model 55 (GFI #7746) for both regular & low conductivity
• Pallet quantity: 16
• Ground connection: screw
• Conductivity range: 125 to 1250 µs/cm
• Water fill connection: 1/4" O.D. Compression adapter to 3/4" FPS
• Input water type: potable water (no demineralized or softened water)
• Drain water temperature: <140°F / <60°C

Features:

• One unit for both 115 & 230 V (via internal switch)
• One cylinder for both regular and low conductivity
• Spark plug style wire connectors for easy cylinder replacement
• Enhanced, easy-to-read control module
• One-screw cover release for easy access
• Screw permanently affixed to cover to prevent dropping, loss
• Water tempering for safety
• Includes installation kit, and heavy duty, pre-drilled metal mounting straps that allow for installation to wall studs (16")
• Includes our NEW GFX4 (same as GFX3 but also allows for control of furnace blower motor)
