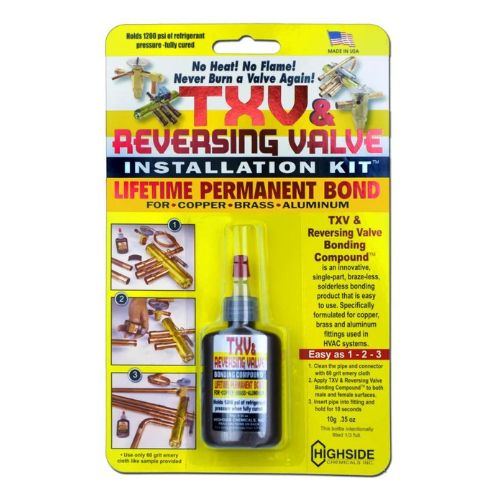

Flameless TXV & Reversing Valves Installation Kit, 32100

TXV & Reversing Valve Bonding Compound is a single-part, solderless bonding solution for HVAC new installations and repairs, compatible with all refrigerants and oils. It bonds copper, aluminum, and brass in any combination and requires no mixing, designed to work with standard ASE fittings. After curing, it can withstand temperatures from -65F to 350F (-54C to 176C). One bottle can make approximately 25 bonds on ½ inch tubing. Copper and brass bonding starts within 20 seconds; aluminum bonding forms a fully cured bond in about 2 hours that can withstand 1200 psi.

Applications

• Formulated for copper, brass, and aluminum fittings used in HVAC systems, particularly TXV and reversing valve installations.

How to Use

• Prepare: Ensure proper fit between pipe and connector. Swage connector as needed.
• Sand: Aggressively sand the inside of the connector and outside of the pipe with the provided 60 grit emery cloth until bright and clean. Leave sanding dust on surfaces.
• Prep: Cut the tip; shake thoroughly; discard a small amount from the tip before use.
• Apply: Apply a small bead around the inner circumference of the connector and outer circumference of the pipe.
• Bond: Insert pipe into connector, rotate 45 degrees, and hold for 10 seconds. Full cure occurs 1 to 2 hours after setting.
