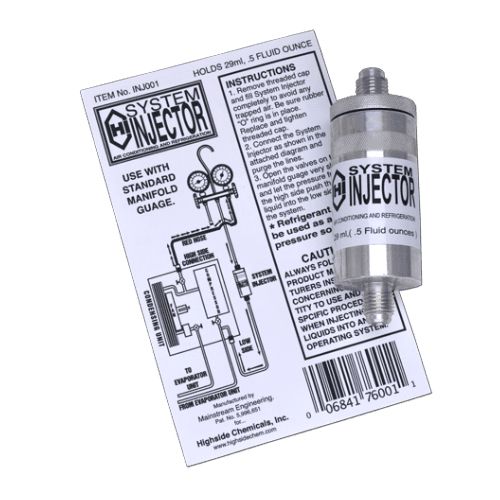

0.5 oz. System Injector for AC/R Systems, INJ001

Highside's Metal Injector is a reusable, aluminum system injector used for introducing any liquid into the low side of a charged hermetic system. Made of aluminum for longevity and o-ring sealed, it is designed for use with any standard manifold gauge, requiring no extra valves or fittings. It helps prevent the venting of refrigerants into the atmosphere and prevents the introduction of air into the operating system.

Applications

• Used with a standard manifold gauge and hermetic systems with a working pressure up to 250 psi.
• Recommended for use with Trace, Trace 2, Thawzone, and Acid Neutralizer.

How to Use

• Check: Before removing the cap, check for any pressure buildup by depressing the valve core depressor.
• Fill: Unscrew the cap, fill the injector completely to the top with the liquid to be injected, and replace the cap.
• Connect: Connect the injector to the gauge set and purge the lines.
• Open Valves: Slowly open valves on the manifold gauge and use refrigerant charge pressure to inject the liquid into the low side of the system.
• Store: Always store the injector with lines removed and cap loose to prevent thread binding and pressure buildup.
