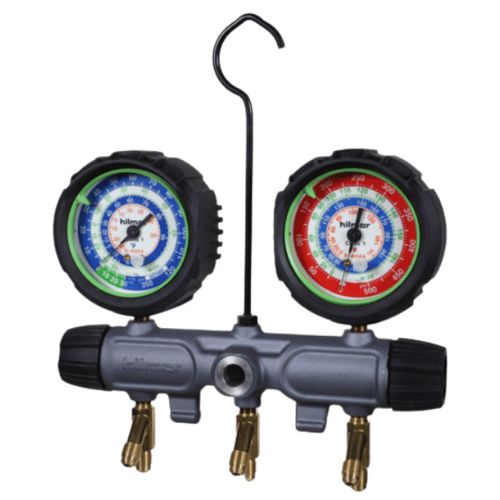

2 Valve Aluminum Manifold, R410A Without Hoses (0-800 psi)

All the rough-and-tumble features of the 4-Valve Aluminum Manifold in a simple 2-valve combination. Because we know manifolds are your lifeline. The hilmor 2-Valve Aluminum Manifold is built to last with a forged aluminum body. It's designed to be leakproof with replaceable stainless steel valve seats, SAE-style O-rings and a securely seated large sight glass. Front-mounted hose positions and a permanent location for temperature clamps result in added convenience. And it's finished off with comfort-grip rubberized handles optimally sized for easy turns.

Features:

• Extra Confidence - Built to last with a forged aluminum body. Designed to be leak-resistant with replaceable stainless steel valve seats, SAE style o-ring's and a securely-seated, large sight glass.
• Quick on the Job - Get faster vacuum pulls with a true 3/8" bore throughout the valve.
• Comfort Grip - Offers easy access with front-mounted hose positions and a permanent location for temperature clamps.
• Glows in the Dark - Light-activated paint illuminates, so you won’t be left in the dark
• Pressure Indicator Ring - A pressure reminder allows you to set the pressure ring and reference it later.
• Pressure Range Low: -30" Hg to 300 - 500 psi
• Pressure Range High: 0 - 800 psi
• Accuracy: Class 1 - 1% Accuracy (full scale)
• Gauge Connection Type: 1/8" NPT Male Fitting
• Valve Type: Double O-Ring Piston Style
• Valve Seat (Orifice): Replaceable Stainless Steel (SAE style straight thread with o-ring)
• Sight Glass: Bonded steel with SAE style straight thread with o-ring
• Vacuum Port: 3/8" full bore (quantity 1)
• Charge Ports: 1/4" (quantity 3)
