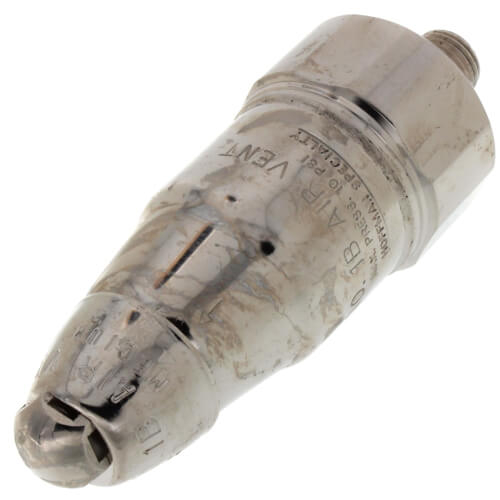

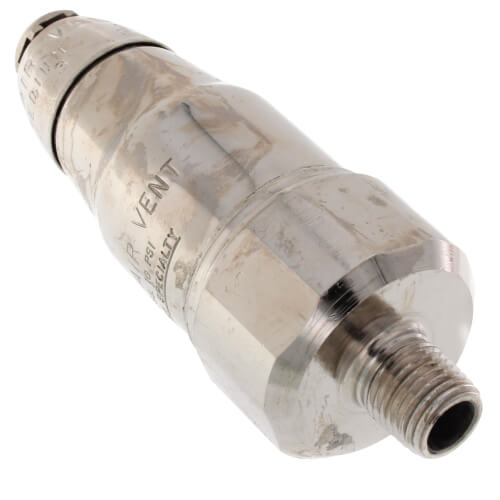

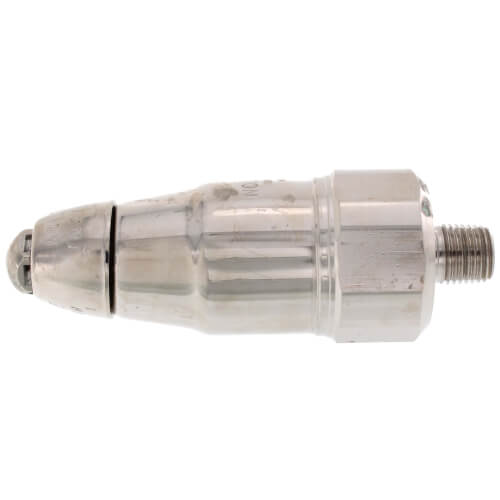

1B, 1/4" Adjustable Straight Convector Air Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$89.75 each
In Stock
Get 7 Wed, Jul 30
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/4"
Steam
240°F Max Temp
10 psig
Steel
Straight
Description
–
Air Valve (non-vacuum)
- Float-type vent
- Adjustable port for true proportional venting –
6 port settings from slow (1) to fast (6) - Telescopic siphon tube
- 1⁄4" NPT straight shank
- Maximum operating pressure 1.5 psig (0.1 bar)(Drop away pressure - maximum pressure against which the vent can open).
- Maximum pressure 10 psig (0.7 bar)
Specs
–
| Application: | Convector Vent |
|---|---|
| Size: | 1/4" |
| Type: | Float-type Vent Non-Vacuum |
| System Type: | Steam |
| Max Pressure: | 10 psig |
| Max Operating Pressure: | 1-1/2 psig |
| Adjustability: | Adjustable |
| Material: | Steel |
| Body Pattern: | Straight |
| Mount: | Straight |
| Thread Type: | Male |
| Max Temp (F): | 240°F |
| Temperature Range (F): | 140°F - 240°F |
| Min Temp (F): | 140°F |
| Thread Size: | 1/4" |
Contact
+
Questions?
Customer Support has a delayed opening today for a monthly team meeting to better support you.
Call or text 888-757-4774
Special Hours
9:15am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Solid product at a great price.
The air valve is made by the best in the business, and I expect many years of service life.
Juan
New York City
11 months ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can you mount these horizontally ?
Asked by Andy 3 years ago
Add your answer
Verified Reply- SupplyHouseHi Andy! This has to be mounted vertically, it cannot be mounted horizontally.
