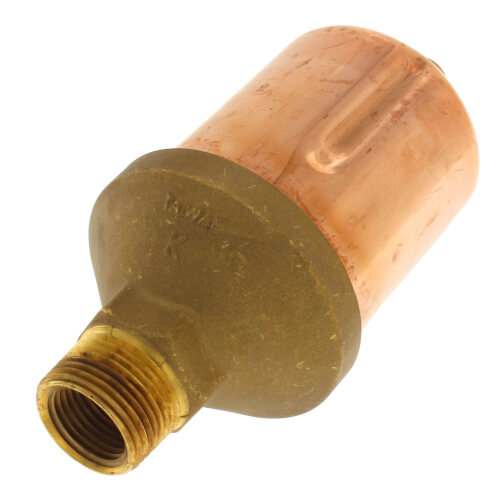

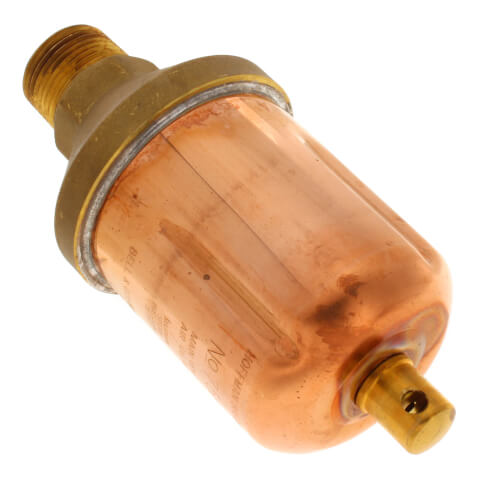

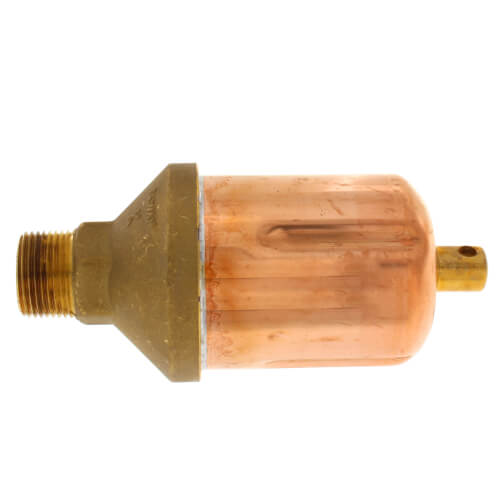

75H, 1/2" x 3/4" Straight Steam Main Air Valve

Brand:
Hoffman
SKU:
401437
Rating:
(6)
Q&A:
(0)
75H, 1/2" x 3/4" Straight Steam Main Air Valve
Magnifying glass
Hover image to zoom
$166.06 each
In Stock
In Stock
Get 6 Wed, May 21
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1/2" x 3/4"
Product Highlight: System Type
Steam
Product Highlight: Max Temp (F)
240°F Max Temp
Product Highlight: Max Pressure
15 psig
Product Highlight: Mount
Straight
Product Highlight: Body Pattern
Straight

Description

–
Air Valve (non-vacuum)
  • Float-type thermostatic vent
  • For medium and large systems
  • Single non-adjustable port
  • 1⁄2" NPT female and 3⁄4" NPT male
    straight shank
  • Maximum operating pressure 10 psig (0.7 bar)(Drop away pressure - maximum pressure against which the vent can open).
  • Maximum pressure 15 psig (1.0 bar)

Specs

–
Application:

Main Vent

Size:

1/2" x 3/4"

Type:

Float-type Vent

Non-Vacuum

System Type:

Steam

Max Pressure:

15 psig

Max Operating Pressure:

10 psig

Mount:

Straight

Adjustability:

Non-Adjustable

Body Pattern:

Straight

Material:

Steel

Thread Type:

Female

Male

Max Temp (F):

240°F

Temperature Range (F):

140°F - 240°F

Min Temp (F):

140°F

Thread Size:

1/2"

3/4"
