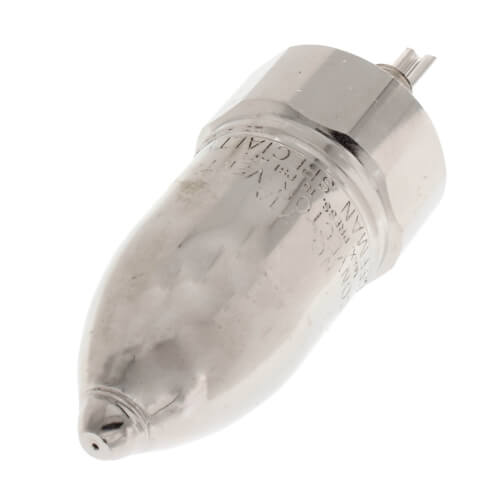

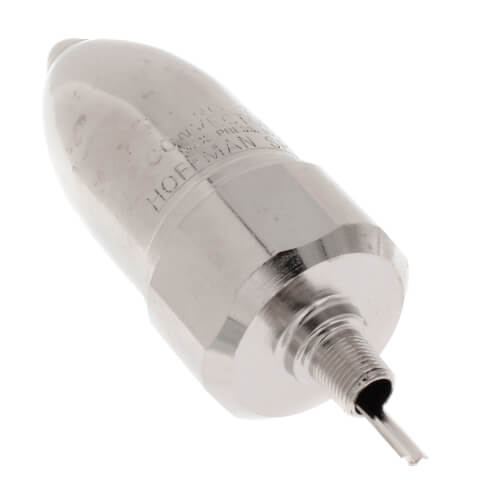

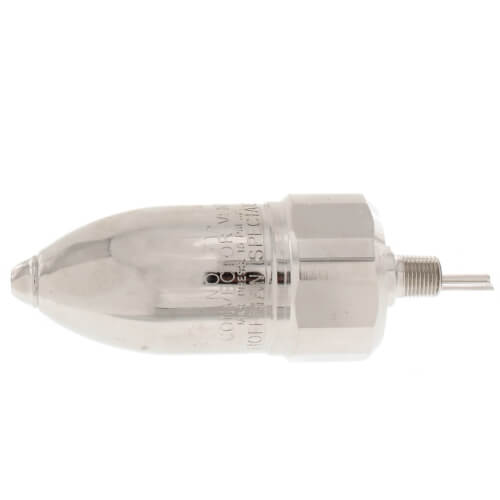

71A, 1/8" Straight Steam Convector Air Valve

Brand:
Hoffman
SKU:
401470
Rating:
(0)
Q&A:
(0)
71A, 1/8" Straight Steam Convector Air Valve
Magnifying glass
Hover image to zoom
$108.08 each
Backorder
Backorder
Get it Tue, Aug 19 - Wed, Sep 17
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Size
1/8"
Product Highlight: System Type
Steam
Product Highlight: Max Temp (F)
240°F Max Temp
Product Highlight: Max Pressure
15 psig
Product Highlight: Mount
Straight
Product Highlight: Material
Steel

Description

Air Valve (non-vacuum)
  • Float-type vent
  • Single non-adjustable port
  • Meets Federal Specification WW-V-151 for Type 1
    Non-Adjustable Valves
  • Telescopic siphon tube with angle cut assures drainage
  • 1⁄8" NPT straight shank
  • Maximum operating pressure 11 psig (0.8 bar) (Drop away pressure - maximum pressure against which the vent can open).
  • Maximum pressure 15 psig (1.0 bar)

Specs

Application:

Convector Vent

Size:

1/8"

Type:

Non-Vacuum

Float-type Vent

System Type:

Steam

Max Pressure:

15 psig

Max Operating Pressure:

11 psig

Mount:

Straight

Adjustability:

Non-Adjustable

Material:

Steel

Body Pattern:

Straight

Thread Type:

Male

Min Temp (F):

140°F

Temperature Range (F):

140°F - 240°F

Max Temp (F):

240°F

Thread Size:

1/8"
