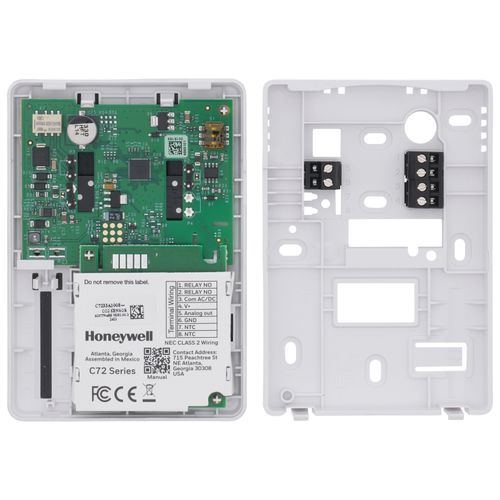

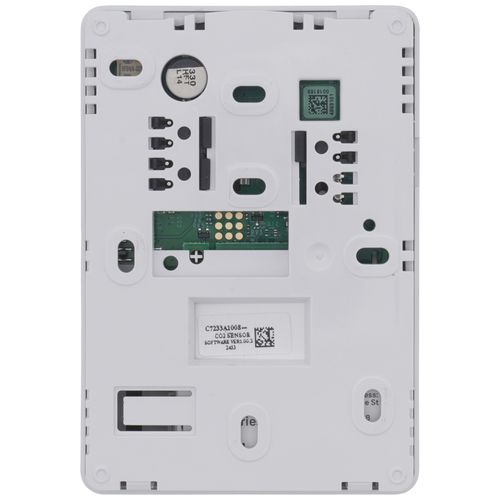

C7263 CO2/20K ohm Temperature Sensor with Display (Wall Mount)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$527.81 each
In Stock
Get 36 Thu, Jul 9
MANUALS (3)
This item replaces: C7262A1008, C7262A1016
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Wall
24V
32°F to 122°F
Description
–
The C7263 Series Sensors are stand-alone carbon dioxide (CO2) sensors for use in determining ventilation necessity with HVAC controllers. The C7263 measures the CO2 concentration and temperature in the occupied space. C7263 sensors are used in ventilation systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO2, and optional temperature sensing.
Product Features:
- Wall mount
- Ultra compact size and elegant design with easy cleaning with smooth front membrane
- Options with or without white LED displays - all variants have red LED notification activated when CO2 level exceeds preset threshold
- Analog output range is selectable 0/2-10 Vdc, 4-20mA and provides accurate proportional linear signal through entire sensing range 0-2000ppm
- Highly accurate and reliable non-dispersion infrared (NDIR) technology for CO2 sensing
- Programmable SPST Relay (1A@50VAC/24VDC)
- Optional temperature output (20K ohm NTC)
Specs
–
| Mount: | Wall |
|---|---|
| Features: | LCD Display |
| Voltage: | 24V |
| Relays: | Normally Open SPST |
| Temperature Range (F): | 32°F to 122°F |
| Response Time: | <20 Seconds |
| Sensor Type: | Non-dispersive infrared (NDIR) |
| Relative Humidity: | 0% to 95% non condensing |
| Output: | 0/2 to 10 VDC 4-20 mA |
