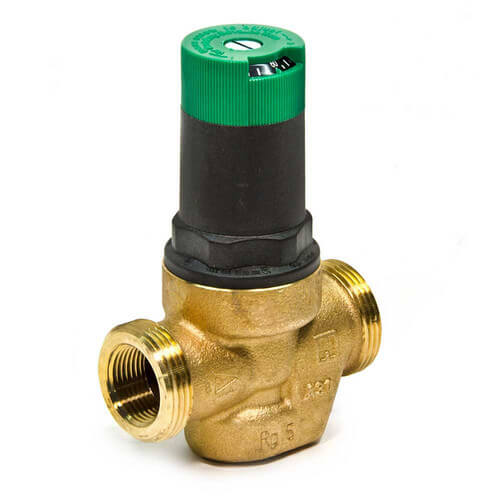

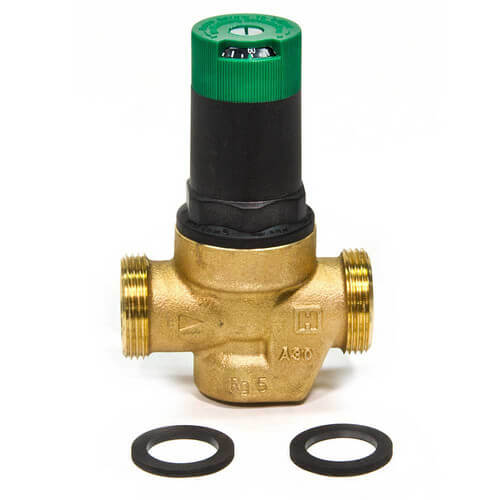

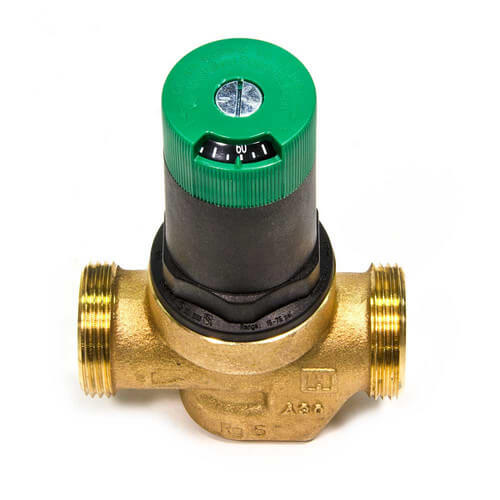

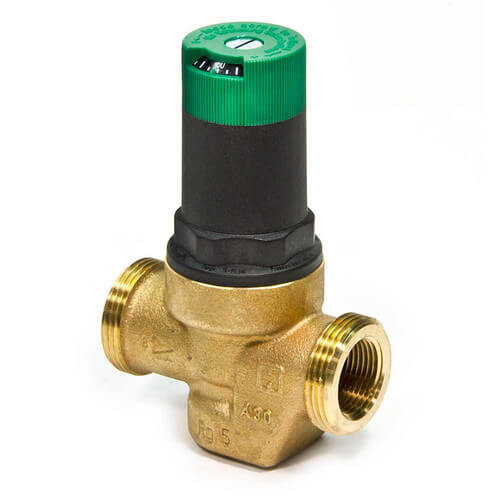

Threaded 1 in. Pressure Regulating Valve with Calibrated Adjustment Dial
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DS05C1063 has been discontinued
Discontinued August 26, 2014
This product was discontinued by the manufacturer.
MANUALS (3)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Direct Replacement:
1" DialSet Pressure Regulating Valve Body (Lead Free)
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Bronze
90 MAX PSI
Threaded Connection
15 PSI
1"
180°F MAX
Description
–
Valves for new residential and light commercial construction, drip irrigation, and other applications requiring highly sensitive and accurate regulation. Easy DialSet® Adjustment (no gauge required)
Features
Specifications
Features
- Dial is calibrated in 10 psi increments to allow quick and accurate adjustment of outlet pressure.
- Flow capacity and accuracy make the DS05 suitable for potable water service and most irrigation applications.
- High pressure (400 psi) inlet rating.
- Non-corroding unitized cartridge contains all working parts and is easily replaceable.
- Bronze body with stainless steel and engineered thermoplastic internal parts.
- Balanced single seat for accurate pressure output under varying inlet pressures.
- Inlet and outlet are internally threaded female NPT, and externally threaded for use with union assemblies.
- Built-in strainer and thermal bypass.
- One model can be used in low, standard or high pressure applications.
Specifications
- Description: Threaded 1 in. Pressure Regulating Valve
- Pipe Size (in): 1in
- Pipe Size (DN): DN25
- Pipe Connections: Female NPT threaded inlet and outlet. Externally threaded for unions.
- Outlet Pressure Adjustment Range (psi): 15-90 psi
- Max. Inlet Pressure Rating (psi):400 psi
- Materials: Bronze (body), Fabric reinforced diaphragm, Stainless steel and engineered thermoplastics.
- Gauge Tap: none
- Calibrated Adjustment Dial: YES
- Dimensions (in.): 5 -1/4 in. high x 3 -15/16 in. long
- Reducing Ratio: 10:1 maximum
- Temperature Range (F):180F
- Union Fittings: Non-union body
Specs
–
| Size: | 1" |
|---|---|
| Min Pressure (PSI): | 15 |
| Pressure Range: | 15 to 90 psi |
| Max Pressure (PSI): | 90 |
| Connection Type: | Threaded |
| Max Inlet Pressure: | 400 PSI |
| Temperature Range (F): | 180°F MAX |
| Height: | 5-1/4" |
| Material: | Bronze |
| Width: | 3-15/16" |
| Gauge: | none |
| Application: | Heating |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Union Fittings: | Union Body (No Tailpieces) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Just as desribed
I am using this on an irrigation system to control pressure to the sprinklers. It is perfect and I really like the calibrted settings. Takes all the guess work away.
RAS
Winter Haven, FL
13 years ago
Verified Buyer
Was this review helpful to you?
Excellent prduct
This was a direct replacement for a regulator that lasted around ten years. Took a little less than ten minutes to install and is presently working great. This model was more compact then the one I originally had but the dimensions between the threads was exactly the same and no problems occurred. Pex was extremely fast in shipping. Highly recommend.
Barry
Lake Forest, CA
14 years ago
Verified Buyer
Was this review helpful to you?
High water pressure problems resolved
Water pressure at my house was nearly 100 psi and destroyed the heat exchanger on my tankless water heater in a few years. The dial pressure setting on this product elimiinates the need for a gauge and as of now it is working very well. I have used standard pressure regulators with gauges before and had them give out in a couple of years and even blow out the pressure gauge, so I hope this one holds up!
hopeful
Marysville, KS
15 years ago
Verified Buyer
Was this review helpful to you?
Works as planned
Used to reduce pressure from rain water collection pump.
Installation was easy, not necessary to adjust pressure, seems to hold pressure constant on discharge
none
Cypress, TX
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can it be used for the pressure coming into the house for a water hose connection? The water pressure coming in is too strong for the water hose.
Asked by Dan aka Butch 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis valve can be used to reduce incoming water pressure within its specified pressure range (15 to 90 psi). Pressure reducing valves are normally installed on a home's water main.
Was this review helpful to you?
-
Yes.
Was this review helpful to you?
Q: Is this valve suitable for outside use mounted in a vertical orientation? Will use on a irrigation system. The line will be air pressure cleared in the winter. thanks
Asked by Carl 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve can be used for irrigation applications and may be mounted in any position. Please take proper precautions to prevent water from freezing in the valve.
