$370.68 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
This item replaces: H7636B2026
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Wall, Duct
T775 Series, T7350, Excel 10, Excel 15
Description
–

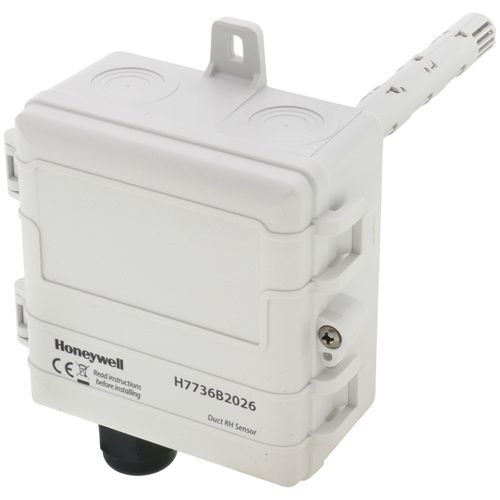

The H7636B Duct-Mount Humidity/Temperature Sensors are universal Relative Humidity transmitters that can be powered with either a +18 to 40 Vdc or 24 Vac supply.
Features:
Features:
- Application: Duct mounted Humidity and Temperature Sensor
- Dimensions: 4-9/16" high, 3" wide, 7/8" deep
- Used With: Excel 15, Excel 10, T7350, T775 Series 2000
- Mounting: Wall mount
- Operating Humidity Range (% RH): 0 to 90% RH non-condensing
- Sensor: 1097 ohm PTC
- Voltage: 18 – 40 VDC / 18 - 28 VAC
- Operating Temperature Range (F): 32 to 122°F
- Shipping and Storage Temperature Range (F): -40 to 160°F
- Output: Humidity-- 4-2 0mA, 0-5 Vdc, or 0-10 Vdc selectable; Temperature--1097 ohm at 77F
- Accuracy: ±3% from 20-95% RH
- Sensor Range: 0 to 100% RH
Specs
–
| Application: | Accessory Humidity |
|---|---|
| Mount: | Wall Duct |
| Humidity Range: | 0 to 95% RH (Non Condensing) |
| Accuracy: | ± 3% |
| Used With: | T775 Series T7350 Excel 10 Excel 15 |
| Ohms: | 1097 |
