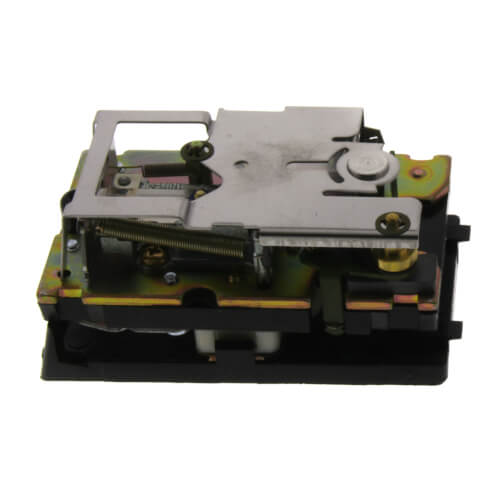

Pneumatic Humidity Sensor, 15 to 85% RH range

One- or two-pipe, direct-acting humidity sensor used with RP908/RP920 Controllers to provide proportional control of pneumatic valve or damper actuators in systems requiring humidification or dehumidification control.

Features

• Corrosion resistant materials.
• Simple plug-in air head connections.
• Factory calibrated.
• Continuous relative humidity indication available by using receiver gage.
• Integral or external restriction can be used.

Features

• Humidity Sensor Range:15 to 85% RH
• Number of Pipes: 1 or 2
• Action: 1 or 2
• Connections:Push-on barb for 5/32 in. (4 mm) O.D. tubing
• Mounting:Vertical or Horizontal Wall Mounting or Mounted in Duct Sampling Chamber
• Maximum Safe Operating Pressure (psi): 25 psi
• Output Pressure Range:3 psi to 15 psi
• Maximum Operating Temperature (F): 125F

Note: Order Cover Separately
