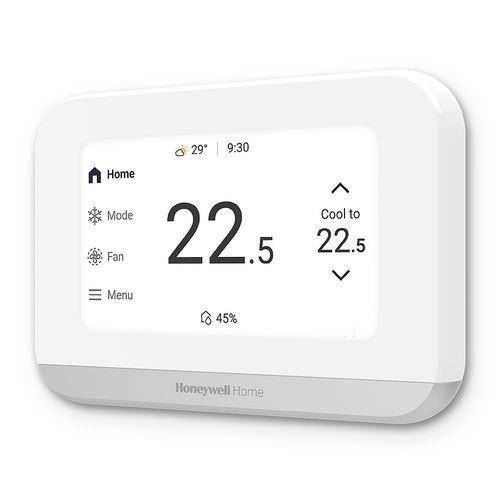

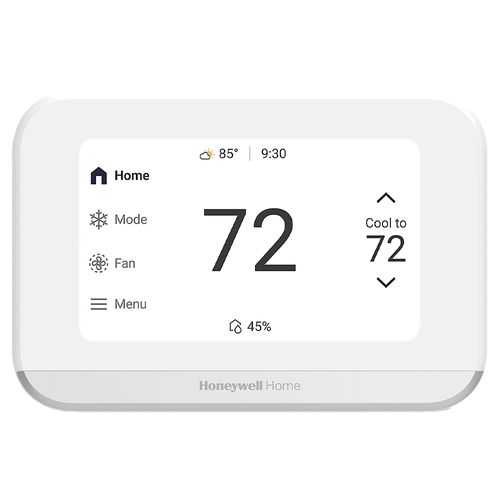

ElitePRO S1000 4.3" Smart Thermostat, White, THX1000W1

The ElitePRO S1000 Smart Thermostat delivers modern design, a 4.3" customizable touchscreen, plus indoor humidifier, dehumidifier, or ventilator control. Combined with the Pro-IQ services, you can super-charging your business. Additional HVAC equipment or accessories may be required.

Features:

• Digital Display
• ENERGY STAR Certified
• Touchscreen Display
• Utility Rewards
• WiFi Connection
• Indoor Air Quality Control
• Works with residential and commercial systems up to 4H/2C heat pump or 3H/2C conventional
• Control up to 2 IAQ devices1 with configurable outputs
• Monitor indoor humidity
• Decorative silver accent piece
• Expandable application coverage and simplified installation with use of equipment interface module1 (EIM)
• Compatible with dual fuel, fan-coil, PTAC, and radiant systems
• Advanced occupancy detection helps save energy
• Redlink 3.0 technology connects wirelessly with Room Sensors (temp, humidity, & motion), EIM, and Outdoor Sensors (temp & humidity)
• Prioritize the comfort of the room of choice with remote Room Sensors
• 5-year warranty
• Create, save, and apply installation templates using the Resideo Pro app for fast setup and reduced errors
• Display company info on-device and in-app for easy customer contact
• Monitor HVAC alerts and remotely modify settings to quickly resolve issues

Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Product Features: Time-Based or Smart Away programming for energy efficiency, Includes Onboard Radar Sensor
• Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 2 Heat/3 Cool for conventional systems
• Smart Home Integration: Yes
• Display Size: 4.3 in diagonal
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls
• Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired
• Power Source: Hardwired
• Warranty: 5 Years
• Includes: ElitePRO S1000 Series Thermostat, UWP Wall Plate, Decorative Cover Plate with J-Box Adapter, Screws and Anchors
• For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor, C7089R3013 wireless outdoor sensor, EIM4010 Equipment Interface Module
• Bluetooth Specifications: BLE 2.4 GHz
• WiFi: Yes
• WiFi Specifications: 2.4 & 5GHz
• RedLINK: Yes, 3.0
• Color: White
• Ambient Operating Temperature (Max): 102 F, 39 C
• Ambient Operating Temperature (Min): 37 F, 3 C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Compatible Sensor: C7189R3010-2
• Auto Changeover: Yes
• Humidity Set point (Max): 90 % RH
• Humidity Set point (Min): 0 % RH
• Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
• Number of Fan Speeds: Fan speeds for some systems
• Power Supply Frequency: 60 Hz
• Set point Temperature (Max): Heat: 90 F, Cool: 99 F, Heat: 32 C, Cool: 37 C
• Set point Temperature (Min): Heat: 40 F, Cool: 50 F, Heat: 4.5 C, Cool: 10C
• Shipping and Storage Temperature (Max): 120 F, 49 C
• Shipping and Storage Temperature (Min): -20 F, -29 C
• Mounting Location: Wall, Junction Box
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Weight: 0.91 lb
• Product Depth: 0.96 in, 24 mm
