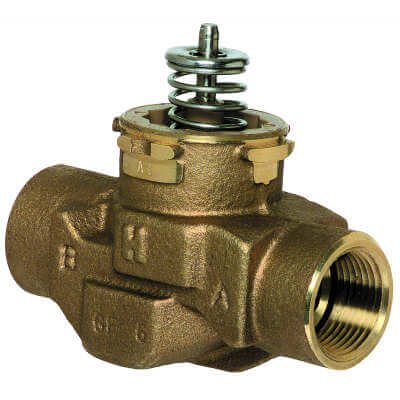

3/4" NPT Two Way Cartridge Cage Valve (4.7 Cv)

Two-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

Product Features

• Quick open, linear, and equal percentage flow characteristics available
• Bi-directional installation
• 3000-series valves for floating and modulating non-fail safe applications
• 1000-series valves for two-position control
• High close-off rating independent of Cv
• Available with a variety of North American and international pipe fittings
• No tools required for actuator installation or removal
• Actuator removal does not require draining system
• Service is by replacement of cartridge, not valve body
• Cartridge replacement rebuilds valve to factory-new condition

Product Specifications

• Valve Type: Cartridge Cage Valve
• Body Pattern: Two-way, Straight-Through
• Flow Characteristic: Linear
• Controlled Medium: Chilled or hot water with up to 60% Glycol
• Connection Type: NPT (Female)
• Max. Safe Operating Pressure: 300 psi
• Maximum Differential Pressure Ratings (Close-off) (psi): 60 psi
• Valve Action: Stem up to close A port
• Actuation: Must be purchased separately
• Stem Travel: 2/5 in.
• Ambient Temperature: 32 to 150 F
