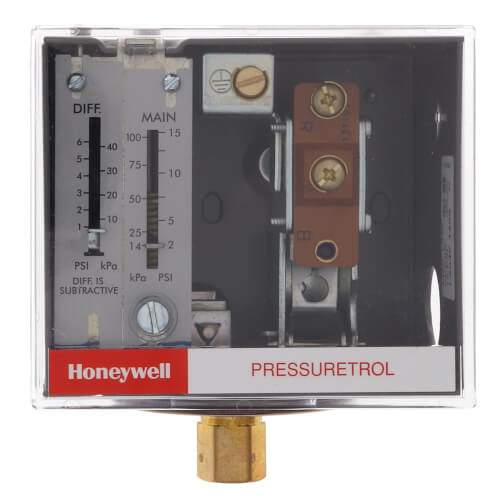

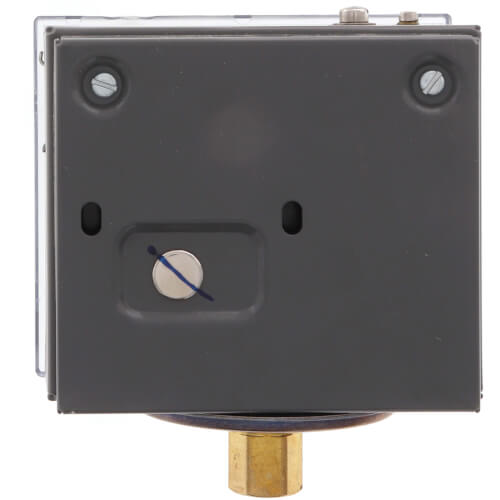

Pressuretrol Controller, Auto Recycle, 2 psi to 15 psi (Make-on-Rise Model)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$162.48 each
In Stock
Get 7 Fri, Mar 31
More Available
Order by 4PM, receive Friday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 PSI
2 PSI
Description
–
Make-on-rise models with terminal B omitted for miswiring compliance.
Provide operating control with automatic limit protection for pressure systems up to 300 psi (2068 kPa).
Features
Specifcations
Provide operating control with automatic limit protection for pressure systems up to 300 psi (2068 kPa).
Features
- Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element.
- Models have snap-acting switching to open or close a circuit on pressure rise.
- Have adjustable differentials.
- Adjustments are made by screws on top of case.
- Mount using 1/4 inch -18 NPT internal pipe threads or surface mount through base of case.
- Ground screw terminal.
Specifcations
- Application:Provide control of steam, air, non-combustible gases or non-corrosive fluids
- Operating Range: 1 to 8 psi
- Mounting:1/4 in. NPT internal thread or surface mount through back of case
- Switch Operation:Auto recycle
- Switching Action:Snap switch makes R-W on pressure rise
- Sensor Element:Brass bellows
- Pipe Connections, Main or High Pressure:1/4" NPT internal thread
- Switch Contact Ratings (120v):8.0 AFL, 48.0 ALR, 10.0 A resistive
- Switch Contact Ratings (240v): 5.1 AFL, 30.6 ALR, 5.0 A resistive
- Maximum Sustained Operating Pressure: 25 psi
- Pressure Differential (psi): 2 to 6 psi
- Differential Type: Subtractive
- Temperature Range: -35 to 150 F
- Electrical Connections:Screw terminals
Specs
–
| Max Pressure (PSI): | 15 |
|---|---|
| Min Pressure (PSI): | 2 |
| Sensor Element: | Brass bellows |
| Min Pressure Differential (PSI): | 2 |
| Max Pressure Differential (PSI): | 6 |
