L482A1004 has been discontinued
Discontinued November 6, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
55°F Max Temp
15°F Min Temp
5°F
SPST
Description
–

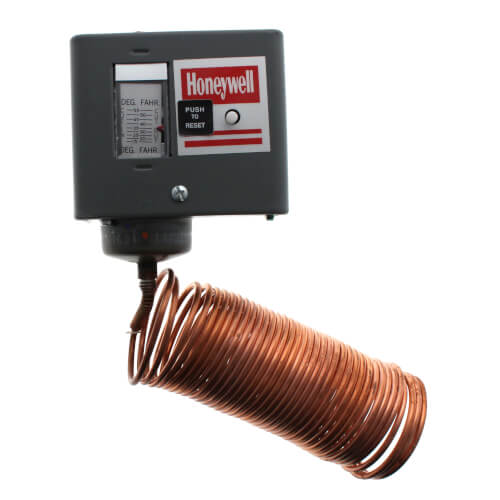

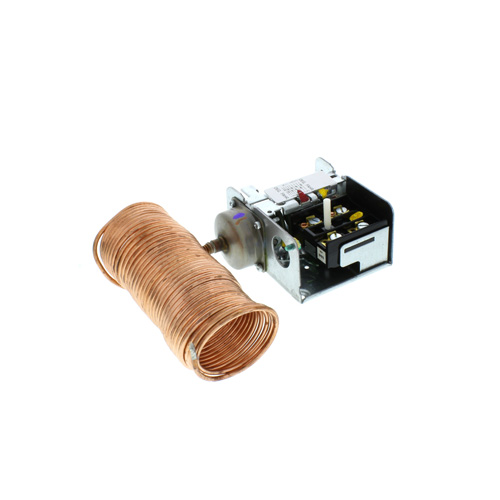

Used to limit or control temperature in air conditioning systems or refrigerated enclosures.
Specifications
Features
Specifications
- Type: Averaging element
- Application: Provides temperature or limit control of air conditioning systems by operating electric motors for dampers, valves, compressors, or fans.
- Switching: 2 SPST, one N.O., one N.C.
- Setting Temperature Range: 15 to 55 F
- Sensor Element: Coldest point on the capillary
- Capillary Length: 20 ft.
- Maximum Operating Temperature (F): 140 F
- Differential Temperature (F): 5 F
Features
- Applications include freezer cabinets, display cases, beverage coolers, milk cooling tanks and air conditioners.
- Can act as a frost alarm operator in storehouses or orchards where frost would damage crops or equipment.
- Dual temperature scaleplate provided for both Fahrenheit and Celsius readings.
Specs
–
| Min Temp (F): | 15°F |
|---|---|
| Max Temp (F): | 55°F |
| Temperature Range: | 15° to 55°F |
| Capillary Length: | 240" |
| Differential: | 5°F |
| Switch Action: | SPST |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: How does the Refrigeration Low Limit Controller work?
Asked by ter 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe L482A Low Limit Controller provides temperature or limit control of air conditioning systems by operating electric motors for dampers, valves, compressors, or fans. For more information on the installation and operation of the unit, please go to the Manuals tab under the product image of this part for the Honeywell product manuals.
